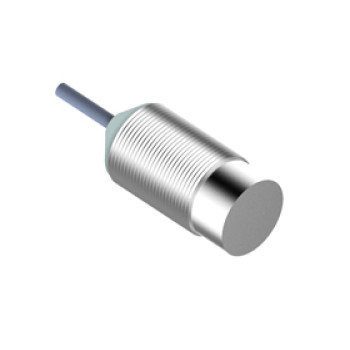

Metal Face Inductive Proximity Sensor | LJ30 Pre-wired Non-Shielded Cylindrical M30 2 Meter Cable | DADISICK
- group name
- All-metal Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Metal Face Inductive Proximity Sensor | LJ30 Pre-wired Non-Shielded Cylindrical M30 | LJ30-13NO-ZBA-3A-SFE, LJ30-13NC-ZBA-3A-SFE, LJ30-13PO-ZBA-3A-SFE, LJ30-13PC-ZBA-3A-SFE, LJ30-13NO-ZBA-3A-SNF, LJ30-13NC-ZBA-3A-SNF, LJ30-13PO-ZBA-3A-SNF, LJ30-13PC-ZBA-3A-SNF
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 04:41:49 GMT
Paramtents
Size: Cylindrical M30
Detection range: 13mm
Case material: Stainless steel
Connection type: 2M cable
Output method: NPN NC/NO, PNP NC/NO, NC, NO
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Non-Shielded
Detection range: 13mm
Case material: stainless steel
Connection type: 2M cable
Output method: NPN NC, NPN NO, PNP NC, PNP NO,NC, NO
Detection range: 13mm
Case material: stainless steel
Connection type: 2M cable
Output method: NPN NC, NPN NO, PNP NC, PNP NO,NC, NO
Detailed
|
Metal Face Inductive Proximity Sensor M30 Non-Shielded Pre-wired Series 2M Cable Datasheet
|
|||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
Technical description | |
LJ30-13NO-ZBA-3A-SFE | NPN NO | 13mm | 2M Cable | 200mA | Non-Shielded | 10-30VDC | Stainless steel | Ferrous detect only | |
LJ30-13NC-ZBA-3A-SFE | NPN NC | ||||||||
LJ30-13PO-ZBA-3A-SFE | PNP NO | ||||||||
LJ30-13PC-ZBA-3A-SFE | PNP NC | ||||||||
LJ30-13NO-ZBA-3A-SNF | NPN NO
| Ferrous Non detective | |||||||
LJ30-13NC-ZBA-3A-SNF | NPN NC
| ||||||||
LJ30-13PO-ZBA-3A-SNF | PNP NO
| ||||||||
LJ30-13PC-ZBA-3A-SNF | PNP NC | ||||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency | 150HZ | ||
Response time | 1ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | Stainless steel | ||
