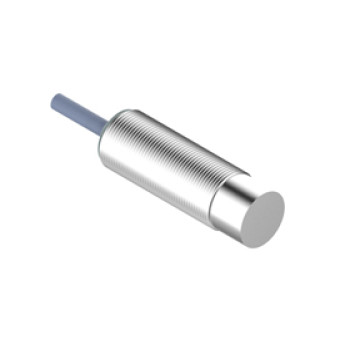

Metal Face Inductive Proximity Sensor | LJ18 Pre-wired Non-Shielded Cylindrical M18 Short Type 2 Meter Cable | DADISICK

group name: All-metal Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Metal Face Inductive Proximity Sensor | LJ18 Pre-wired Non-Shielded Cylindrical M18 | LJ18-08NO-ZBA-3M-S, LJ18-08NC-ZBA-3M-S, LJ18-08PO-ZBA-3M-S, LJ18-08PC-ZBA-3M-S, LJ18-08HO-ZBD-2M-S, LJ18-08HC-ZBD-2M-S,LJ18-10NO-ZBA-3M-S, LJ18-10NC-ZBA-3M-S, LJ18-10PO-ZBA-3M-S, LJ18-10PC-ZBA-3M-S

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 03:38:31 GMT

contact supplier

Paramtents

Size: Cylindrical M18
Detection range: 8mm-10mm
Case material: Stainless steel
Connection type: 2M cable
Output method: NPN NC/NO, PNP NC/NO, NC, NO
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Non-Shielded
Detection range: 8mm-10mm
Case material: stainless steel
Connection type: 2M cable
Output method: NPN NC, NPN NO, PNP NC, PNP NO,NC, NO

Detailed

Metal Face Inductive Proximity Sensor M18 Short Type Non-Shielded Pre-wired Series 2M Cable Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LJ18-08NO-ZBA-3A-S	NPN NO	8mm	2M Cable	200mA	Non-Shielded	10-30VDC	Stainless steel
LJ18-08NC-ZBA-3A-S	NPN NC
LJ18-08PO-ZBA-3A-S	PNP NO
LJ18-08PC-ZBA-3A-S	PNP NC
LJ18-08HO-ZBD-2M-S	DC 2-wire NO
LJ18-08HC-ZBD-2M-S	DC 2-wire NC
LJ18-10NO-ZBA-3A-S	NPN NO	10mm				10-30VDC
LJ18-10NC-ZBA-3A-S	NPN NC
LJ18-10PO-ZBA-3A-S	PNP NO
LJ18-10PC-ZBA-3A-S	PNP NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	500HZ
Response time	0.5ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	Stainless steel

Data sheet

Metal Face Series Inductive Proximity Switch DataSheet
