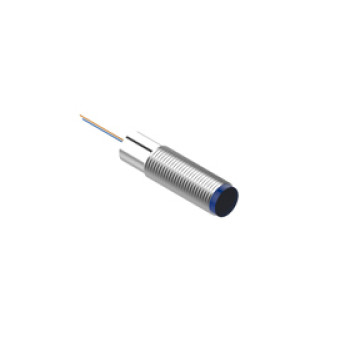

Explosion-proof Inductive Proximity Sensor | LB10 Pre-wired Shielded Cylindrical M10 2M Cable With LED | DADISICK
- group name
- Explosion-proof Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Explosion-proof Inductive Proximity Sensor | LB10 Pre-wired Shielded | LB10-03NA-ZAF-H-LED
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 03:10:06 GMT
Paramtents
Size: Cylindrical M10
Detection range: 3mm
Case material: Nickel Plated Brass
Connection type: 2M Cable
Output method: NAMUR
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 3mm
Case material: Nickel Plated Brass
Connection type: 2M Cable
Output method: NAMUR
Case material: Nickel Plated Brass
Connection type: 2M Cable
Output method: NAMUR
Detailed
Explosion-proof Inductive Proximity Sensor Cylindrical M10 Pre-wired Shielded With LED Series Datasheet |
|||||||
|
Model
|
Output | Sensing distance | Connection | Mounting | Operating voltage | Case material |
|
LB10-03NA-ZAF-H-LED | NAMUR | 3mm | 2 meter cable | Shielded | 6-12VDC | Nickel Plated Brass | |
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
No-load current
|
<1.1mA(OFF) >2.2mA(ON)
|
||
Switching frequency | 5KHZ | ||
Response time | 0.1ms | ||
Switching hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature drift | <1%（Sr） | ||
Time delay | <10ms | ||
EMC | RFI>3V/m / EFT>1KV / ESD>4KV (contact) | ||
Sensing surface material | PBT | ||
Data sheet
