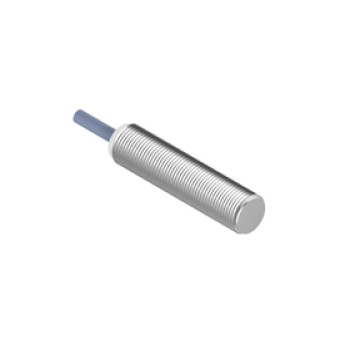

Metal Face Inductive Proximity Sensor | LJ12 Pre-wired Shielded Cylindrical M12 Standard 2 Meter Cable | DADISICK
- group name
- All-metal Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Metal Face Inductive Proximity Sensor | LJ12 Pre-wired Shielded Cylindrical M12 | LJ12-02NO-ZAA-3A-S, LJ12-02NC-ZAA-3A-S, LJ12-02PO-ZAA-3A-S, LJ12-02PC-ZAA-3A-S, LJ12-02HO-ZAD-2A-S, LJ12-02HC-ZAD-2A-S,LJ12-04NO-ZAA-3A-S, LJ12-04NC-ZAA-3A-S, LJ12-04PO-ZAA-3A-S, LJ12-04PC-ZAA-3A-S, LJ12-04HO-ZAD-2A-S, LJ12-04HC-ZAD-2A-S, LJ12-02AO-ZAG-3S-S, LJ12-02AC-ZAG-3S-S
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 03:51:55 GMT
Paramtents
Size: Cylindrical Φ12mm
Detection range: 2mm-4mm
Case material: Stainless steel
Connection type: 2M cable
Output method: NPN NC/NO, PNP NC/NO, NC, NO
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Shielded
Detection range: 2mm-4mm
Case material: stainless steel
Connection type: 2M cable
Output method: NPN NC, NPN NO, PNP NC, PNP NO,NC, NO
Detection range: 2mm-4mm
Case material: stainless steel
Connection type: 2M cable
Output method: NPN NC, NPN NO, PNP NC, PNP NO,NC, NO
Detailed
|
Metal Face Inductive Proximity Sensor M12 Shielded Pre-wired Series 2M Cable Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LJ12-02NO-ZAA-3A-S | NPN NO | 2mm | 2M Cable | 200mA | Shielded | 10-30VDC | Stainless steel | |
LJ12-02NC-ZAA-3A-S | NPN NC | |||||||
LJ12-02PO-ZAA-3A-S | PNP NO | |||||||
LJ12-02PC-ZAA-3A-S | PNP NC | |||||||
LJ12-02HO-ZAD-2A-S | DC 2-wire NO | 10-60VDC | ||||||
LJ12-02HC-ZAD-2A-S | DC 2-wire NC | |||||||
LJ12-04NO-ZAA-3A-S | NPN NO | 4mm | 10-30VDC
| |||||
LJ12-04NC-ZAA-3A-S | NPN NC | |||||||
LJ12-04PO-ZAA-3A-S | PNP NO | |||||||
LJ12-04PC-ZAA-3A-S | PNP NC | |||||||
LJ12-04HO-ZAD-2A-S | DC 2-wire NO | 10-60VDC | ||||||
LJ12-04HC-ZAD-2A-S | DC 2-wire NC | |||||||
LJ12-02AO-ZAG-3S-S | NO | 2mm | 400mA | 20-250VAC | ||||
LJ12-02AC-ZAG-3S-S | NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency | 2KHZ / 1KHZ | ||
Response time | 0.1ms / 0.2ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | Stainless steel | ||
Data sheet
