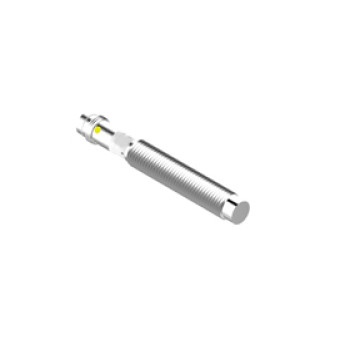

Metal Face Inductive Proximity Sensor | LJ08 Connector Non-Shielded Cylindrical M8 M8 Connector | DADISICK
- group name
- Metal Face Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Metal Face Inductive Proximity Sensor | LJ08 Connector Shielded Cylindrical M8 | LJ08-02NO-YBA-EA-SFE, LJ08-02NC-YBA-EA-SFE, LJ08-02PO-YBA-EA-SFE, LJ08-02PC-YBA-EA-SFE, LJ08-02NO-YBA-EA-SNF, LJ08-02NC-YBA-EA-SNF, LJ08-02PO-YBA-EA-SNF, LJ08-02PC-YBA-EA-SNF
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 08:45:39 GMT
Paramtents
Size: Cylindrical Φ8mm
Detection range: 2mm
Case material: Stainless steel
Connection type: M8 Connector
Output method: NPN NC/NO, PNP NC/ NO
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Non-Shielded
Detection range:2mm
Case material: stainless steel
Connection type: M8 connector
Output method: NPN NC, NPN NO, PNP NC, PNP NO
Detection range:2mm
Case material: stainless steel
Connection type: M8 connector
Output method: NPN NC, NPN NO, PNP NC, PNP NO
Detailed
|
Metal Face Inductive Proximity Sensor M8 Connector Non-Shielded Series M8 Connector Datasheet
|
|||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
Technical description | |
LJ08-02NO-YBA-EA-SFE | NPN NO | 2mm | M8 Connector | 200mA | Non-Shielded | 10-30VDC | Stainless steel | Ferrous detect only | |
LJ08-02NC-YBA-EA-SFE | NPN NC | ||||||||
LJ08-02PO-YBA-EA-SFE | PNP NO | ||||||||
LJ08-02PC-YBA-EA-SFE | PNP NC | ||||||||
LJ08-02NO-YBA-EA-SNF | NPN NO | 10-30VDC | Ferrous Non detective | ||||||
LJ08-02NC-YBA-EA-SNF | NPN NC | ||||||||
LJ08-02PO-YBA-EA-SNF | PNP NO | ||||||||
LJ08-02PC-YBA-EA-SNF | PNP NC | ||||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency | 2KHZ | ||
Response time | 0.1ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | Stainless steel | ||
