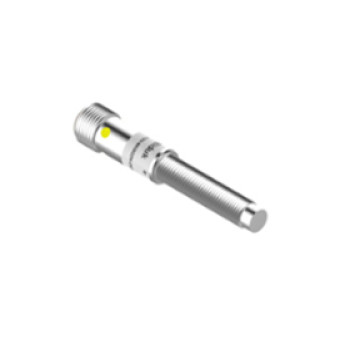

Metal Face Inductive Proximity Sensor | LJ08 Connector Non-Shielded Cylindrical M8 M12 Connector | DADISICK

group name: All-metal Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Metal Face Inductive Proximity Sensor | LJ08 Non-Shielded Cylindrical M8 | LJ08-02NO-YBA-TA-S, LJ08-02NC-YBA-TA-S, LJ08-02PO-YBA-TA-S, LJ08-02PC-YBA-TA-S, LJ08-02HO-YBD-TA-S, LJ08-02HC-YBD-TA-S,LJ08-3.5NO-YBA-TA-S, LJ08-3.5NC-YBA-TA-S, LJ08-3.5PO-YBA-TA-S, LJ08-3.5PC-YBA-TA-S, LJ08-3.5HO-YBD-TA-S, LJ08-3.5HC-YBD-TA-S

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 03:38:31 GMT

contact supplier

Paramtents

Size: Cylindrical M8
Detection range: 2mm-3.5mm
Case material: Stainless steel
Connection type: M12 Connector
Output method: NPN NC/NO, PNP NC/ NO,NO,NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Non-Shielded
Detection range: 2mm-3.5mm
Case material: stainless steel
Connection type: M12 Connector
Output method: NPN NC, NPN NO, PNP NC, PNP NO, NO, NC

Detailed

Metal Face Inductive Proximity Sensor M8 Connector Non-Shielded Series M12 Connector Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LJ08-02NO-YBA-TA-S	NPN NO	2mm	M12 Connector	200mA	Non-Shielded	10-30VDC	Stainless steel
LJ08-02NC-YBA-TA-S	NPN NC
LJ08-02PO-YBA-TA-S	PNP NO
LJ08-02PC-YBA-TA-S	PNP NC
LJ08-02HO-YBD-TA-S	DC 2-wireNO					10-60VDC
LJ08-02HC-YBD-TA-S	DC 2-wireNC
LJ08-3.5NO-YBA-TA-S	NPN NO	3.5mm				10-30VDC
LJ08-3.5NC-YBA-TA-S	NPN NC
LJ08-3.5PO-YBA-TA-S	PNP NO
LJ08-3.5PC-YBA-TA-S	PNP NC
LJ08-3.5HO-YBD-TA-S	DC two wire NO					10-60VDC
LJ08-3.5HC-YBD-TA-S	DC two wire NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	700HZ / 500HZ
Response time	0.1ms / 0.2ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	Stainless steel

Data sheet

Metal Face Series Inductive Proximity Switch DataSheet
