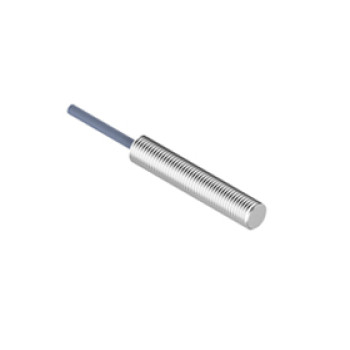

Metal Face Inductive Proximity Sensor | LJ08 Pre-wired Shielded Cylindrical M8 Short type 2 Meter Cable | DADISICK

group name: All-metal Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Metal Face Inductive Proximity Sensor | LJ08 Pre-wired Shielded Cylindrical M8 | LJ08-01NO-ZAA-3M-S, LJ08-01NC-ZAA-3M-S, LJ08-01PO-ZAA-3M-S, LJ08-01PC-ZAA-3M-S, LJ08-01HO-ZAD-2M-S, LJ08-01HC-ZAD-2M-S, LJ08-02NO-ZAA-3M-S, LJ08-02NC-ZAA-3M-S, LJ08-02PO-ZAA-3M-S, LJ08-02PC-ZAA-3M-S, LJ08-02HO-ZAD-2M-S, LJ08-02HC-ZAD-2M-S

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 04:33:00 GMT

contact supplier

Paramtents

Size: Cylindrical M8
Detection range: 1mm-2mm
Case material: Stainless steel
Connection type: 2M cable
Output method: NPN NC/NO, PNP NC/NO, NO, NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded
Detection range: 1mm-2mm
Case material: stainless steel
Connection type: 2M cable
Output method: NPN NC, NPN NO, PNP NC, PNP NO, PNP NO&NC,NPN NO&NC

Detailed

Metal Face Inductive Proximity Sensor M8 Short type Pre-wired Shielded Series 2M Cable Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LJ08-01NO-ZAA-3M-S	NPN NO	1mm	2M Cable	200mA	Shielded	10-30VDC	Stainless steel
LJ08-01NC-ZAA-3M-S	NPN NC
LJ08-01PO-ZAA-3M-S	PNP NO
LJ08-01PC-ZAA-3M-S	PNP NC
LJ08-01HO-ZAD-2M-S	DC 2-wireNO					10-60VDC
LJ08-01HC-ZAD-2M-S	DC 2-wireNC
LJ08-02NO-ZAA-3M-S	NPN NO	2mm				10-30VDC
LJ08-02NC-ZAA-3M-S	NPN NC
LJ08-02PO-ZAA-3M-S	PNP NO
LJ08-02PC-ZAA-3M-S	PNP NC
LJ08-02HO-ZAD-2M-S	DC 2-wire NO					10-60VDC
LJ08-02HC-ZAD-2M-S	DC 2-wire NO

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	1KHZ / 700HZ
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	Stainless steel

Data sheet

Metal Face Series Inductive Proximity Switch DataSheet
