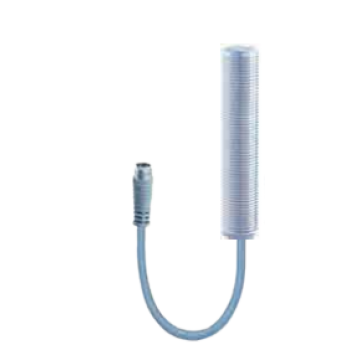

Inductive Proximity Sensor | LR12 Pre-wired Shielded Cylindrical M12 0.3m Cable M12 Connector | DADISICK

group name: Standard Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Inductive Proximity Sensor | LR12 Pre-wired Shielded Cylindrical M12 | LR12-02NO-ZAA-3TA-H, LR12-02NC-ZAA-3TA-H, LR12-02PO-ZAA-3TA-H, LR12-02PC-ZAA-3TA-H, LR12-02PS-ZAA-4TA-H, LR12-02NS-ZAA-4TA-H, LR12-02HO-ZAD-2TA-H, LR12-02HC-ZAD-2TA-H, LR12-02NO-ZAC-3TA-H, LR12-02NC-ZAC-3TA-H, LR12-02PO-ZAC-3TA-H, LR12-02PC-ZAC-3TA-H, LR12-02NO-ZAB-3TA-H, LR12-02NC-ZAB-3TA-H, LR12-02PO-ZAB-3TA-H, LR12-02PC-ZAB-3TA-H, LR12-02PS-ZAB-4TA-H, LR12-02NS-ZAB-4TA-H

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 10:40:27 GMT

contact supplier

Paramtents

Size: Cylindrical M12
Detection range: 2mm
Case material: Nickled brass
Connection type: 0.3m cable M12 connector
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded
Detection range: 2mm
Case material: Stainless steel
Connection type: 0.3m oil-proof PVC cable3 φ 3x0.15+M12 connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Inductive Proximity Sensor M12 Pre-wired Shielded 0.3m Cable M12 Connector Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR12-02NO-ZAA-3TA-H	NPN NO	2mm	0.3m oil-proof PVC cable 3 φ 3x0.15+M12 connector	200mA	Shielded	10-30VDC	Nickled brass
LR12-02NC-ZAA-3TA-H	NPN NC
LR12-02PO-ZAA-3TA-H	PNP NO
LR12-02PC-ZAA-3TA-H	PNP NC
LR12-02PS-ZAA-4TA-H	PNP NO&NC
LR12-02NS-ZAA-4TA-H	NPN NO&NC
LR12-02HO-ZAD-2TA-H	DC 2-wire NO
LR12-02HC-ZAD-2TA-H	DC 2-wire NC
LR12-02NO-ZAC-3TA-H	NPN NO
LR12-02NC-ZAC-3TA-H	NPN NC
LR12-02PO-ZAC-3TA-H	PNP NO
LR12-02PC-ZAC-3TA-H	PNP NC
LR12-02NO-ZAB-3TA-S	NPN NO					5-36VCD
LR12-02NC-ZAB-3TA-S	NPN NC
LR12-02PO-ZAB-3TA-S	PNP NO
LR12-02PC-ZAB-3TA-S	PNP NC
LR12-02NS-ZAB-4TA-S	PNP NO&NC
LR12-02PS-ZAB-4TA-S	PNP NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHZ
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series M12 Inductive Proximity Switch DataSheet
