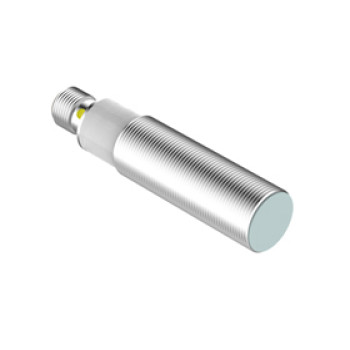

Inductive Proximity Sensor | LR18 Connector Shielded Cylindrical M18 Short Type M12 Connector | DADISICK

model: Standard Inductive Proximity Sensor | LR18 Connector Shielded | LR18-05NO-YAA-TM-H, LR18-05NC-YAA-TM-H, LR18-05PO-YAA-TM-H, LR18-05PC-YAA-TM-H, LR18-05PS-YAA-TM-H, LR18-05NS-YAA-TM-H, LR18-05HO-YAD-TM-H, LR18-05HC-YAD-TM-H, LR18-05NO-YAC-TM-H, LR18-05NC-YAC-TM-H, LR18-05PO-YAC-TM-H, LR18-05PC-YAC-TM-H, LR18-05PO-YAB-TM-H, LR18-05PC-YAB-TM-H, LR18-05NO-YAB-TM-H, LR18-05NC-YAB-TM-H, LR18-05PS-YAB-TM-H, LR18-05NS-YAB-TM-H, LR18-08NO-YAA-TM-H, LR18-08NC-YAA-TM-H, LR18-08PO-YAA-TM-H, LR18-08PC-YAA-TM-H, LR18-08NS-YAA-TM-H, LR18-08HO-YAD-TM-H, LR18-08HC-YAD-TM-H, LR18-08NO-YAC-TM-H, LR18-08NC-YAC-TM-H, LR18-08PO-YAC-TM-H, LR18-08PC-YAC-TM-H, LR18-08PO-YAB-TM-H, LR18-08PC-YAB-TM-H, LR18-08NO-YAB-TM-H, LR18-08NC-YAB-TM-H, LR18-08PS-YAB-TM-H, LR18-08NS-YAB-TM-H, LR18-12NO-YAA-TM-H, LR18-12NC-YAA-TM-H, LR18-12PO-YAA-TM-H, LR18-12PC-YAA-TM-H, LR18-12PS-YAA-TM-H, LR18-12NS-YAA-TM-H, LR18-12HO-YAD-TM-H, LR18-12HC-YAD-TM-H, LR18-12NO-YAC-TM-H, LR18-12NC-YAC-TM-H, LR18-12PO-YAC-TM-H, LR18-12PC-YAC-TM-H, LR18-12PO-YAB-TM-H, LR18-12PC-YAB-TM-H, LR18-12NO-YAB-TM-H, LR18-12NC-YAB-TM-H, LR18-12PS-YAB-TM-H, LR18-12NS-YAB-TM-H, LR18-15NO-YAA-TM-H, LR18-15NC-YAA-TM-H, LR18-15PO-YAA-TM-H, LR18-15PC-YAA-TM-H, LR18-15PS-YAA-TM-H, LR18-15NS-YAA-TM-H, LR18-15HO-YAD-TM-H, LR18-15HC-YAD-TM-H, LR18-15NO-YAC-TM-H, LR18-15NC-YAC-TM-H, LR18-15PO-YAC-TM-H, LR18-15PC-YAC-TM-H, LR18-15PO-YAB-TM-H, LR18-15PC-YAB-TM-H, LR18-15NO-YAB-TM-H, LR18-15NC-YAB-TM-H, LR18-15PS-YAB-TM-H, LR18-15NS-YAB-TM-H

contact supplier

Paramtents

Packging & Delivery

Briefing

Detection range:5-15mm
Case material: Nickled brass
Connection type: M12 connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Inductive Proximity Sensor M18 Connector Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR18-05NO-YAA-TM-H	NPN,NO	5mm	M12 connector	200mA	Shielded	10-30VDC	Nickled brass
LR18-05NC-YAA-TM-H	NPN,NC
LR18-05PO-YAA-TM-H	PNP,NO
LR18-05PC-YAA-TM-H	PNP,NC
LR18-05PS-YAA-TM-H	PNP NO&NC
LR18-05NS-YAA-TM-H	NPN NO&NC
LR18-05HO-YAD-TM-H	NO					10-60VDC
LR18-05HC-YAD-TM-H	NC
LR18-05NO-YAC-TM-H	NPN,NO					10-55VDC
LR18-05NC-YAC-TM-H	NPN,NC
LR18-05PO-YAC-TM-H	PNP,NO
LR18-05PC-YAC-TM-H	PNP,NC
LR18-05PO-YAB-TM-H	PNP NO					5-36VDC
LR18-05PC-YAB-TM-H	PNP NC
LR18-05NO-YAB-TM-H	NPN NO
LR18-05NC-YAB-TM-H	NPN NC
LR18-05PS-YAB-TM-H	PNP NO&NC
LR18-05NS-YAB-TM-H	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHz
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series M18 Inductive Proximity Switch Data Sheet
