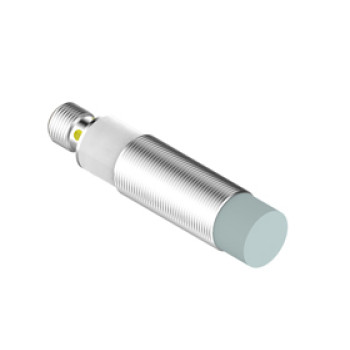

Inductive Proximity Sensor | LR18 Connector Non-shielded Cylindrical M18 Short type M12 Connector | DADISICK

group name: Standard Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Inductive Proximity Sensor | LR18 Connector Non-shielded | LR18-08NO-YBA-TM-H, LR18-08NC-YBA-TM-H, LR18-08PO-YBA-TM-H, LR18-08PC-YBA-TM-H, LR18-08PS-YBA-TM-H, LR18-08NS-YBA-TM-H, LR18-08HO-YBD-TM-H, LR18-08HC-YBD-TM-H, LR18-08NO-YBC-TM-H, LR18-08NC-YBC-TM-H, LR18-08PO-YBC-TM-H, LR18-08PC-YBC-TM-H, LR18-08PO-YBB-TM-H, LR18-08PC-YBB-TM-H, LR18-08NO-YBB-TM-H, LR18-08NC-YBB-TM-H, LR18-08PS-YBB-TM-H, LR18-08NS-YBB-TM-H, LR18-16NO-YBA-TM-H, LR18-16NC-YBA-TM-H, LR18-16PO-YBA-TM-H, LR18-16PC-YBA-TM-H, LR18-16PS-YBA-TM-H, LR18-16NS-YBA-TM-H, LR18-16HO-YBD-TM-H, LR18-16HC-YBD-TM-H, LR18-16NO-YBC-TM-H, LR18-16NC-YBC-TM-H, LR18-16PO-YBC-TM-H, LR18-16PC-YBC-TM-H, LR18-16PO-YBB-TM-H, LR18-16PC-YBB-TM-H, LR18-16NO-YBB-TM-H, LR18-16NC-YBB-TM-H, LR18-16PS-YBB-TM-H, LR18-16NS-YBB-TM-H, LR18-20NO-YBA-TM-H, LR18-20NC-YBA-TM-H, LR18-20PO-YBA-TM-H, LR18-20PC-YBA-TM-H, LR18-20PS-YBA-TM-H, LR18-20NS-YBA-TM-H, LR18-20HO-YBD-TM-H, LR18-20HC-YBD-TM-H, LR18-20NO-YBC-TM-H, LR18-20NC-YBC-TM-H, LR18-20PO-YBC-TM-H, LR18-20PC-YBC-TM-H, LR18-20PO-YBB-TM-H, LR18-20PC-YBB-TM-H, LR18-20NO-YBB-TM-H, LR18-20NC-YBB-TM-H, LR18-20PS-YBB-TM-H, LR18-20NS-YBB-TM-H, LR18-23NO-YBA-TM-H, LR18-23NC-YBA-TM-H, LR18-23PO-YBA-TM-H, LR18-23PC-YBA-TM-H, LR18-23PS-YBA-TM-H, LR18-23NS-YBA-TM-H, LR18-23HO-YBD-TM-H, LR18-23HC-YBD-TM-H, LR18-23NO-YBC-TM-H, LR18-23NC-YBC-TM-H, LR18-23PO-YBC-TM-H, LR18-23PC-YBC-TM-H, LR18-23PO-YBB-TM-H, LR18-23PC-YBB-TM-H, LR18-23NO-YBB-TM-H, LR18-23NC-YBB-TM-H, LR18-23PS-YBB-TM-H, LR18-23NS-YBB-TM-H

Delivery clauses under the trade mode: CIP

update time: Tue, 04 Nov 2025 08:45:10 GMT

contact supplier

Paramtents

Size: Cylindrical M18
Detection range: 8-23mm
Case material: Nickled brass
Connection type: M12 connector
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Detection range: 8-23mm
Case material: Nickled brass
Connection type: M12 connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Inductive Proximity Sensor M18 Connector Non-shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR18-08NO-YBA-TM-H	NPN,NO	8mm	M12 connector	200mA	Non-Shielded	10-30VDC	Nickled brass
LR18-08NC-YBA-TM-H	NPN,NC
LR18-08PO-YBA-TM-H	PNP,NO
LR18-08PC-YBA-TM-H	PNP,NC
LR18-08PS-YBA-TM-H	PNP NO&NC
LR18-08NS-YBA-TM-H	NPN NO&NC
LR18-08HO-YBD-TM-H	NO					10-60VDC
LR18-08HC-YBD-TM-H	NC
LR18-08NO-YBC-TM-H	NPN,NO					10-55VDC
LR18-08NC-YBC-TM-H	NPN,NC
LR18-08PO-YBC-TM-H	PNP,NO
LR18-08PC-YBC-TM-H	PNP,NC
LR18-08PO-YBB-TM-H	PNP NO					5-36VDC
LR18-08PC-YBB-TM-H	PNP NC
LR18-08NO-YBB-TM-H	NPN NO
LR18-08NC-YBB-TM-H	NPN NC
LR18-08PS-YBB-TM-H	PNP NO&NC
LR18-08NS-YBB-TM-H	NPN NO&NC

LR18-16NO-YBA-TM-H	NPN,NO	16mm	M12 connector	200mA	Non-Shielded	10-30VDC	Nickled brass
LR18-16NC-YBA-TM-H	NPN,NC
LR18-16PO-YBA-TM-H	PNP,NO
LR18-16PC-YBA-TM-H	PNP,NC
LR18-16PS-YBA-TM-H	PNP NO&NC
LR18-16NS-YBA-TM-H	NPN NO&NC
LR18-16HO-YBD-TM-H	NO					10-60VDC
LR18-16HC-YBD-TM-H	NC
LR18-16NO-YBC-TM-H	NPN NO					10-55VDC
LR18-16NC-YBC-TM-H	NPN NC
LR18-16PO-YBC-TM-H	PNP NO
LR18-16PC-YBC-TM-H	PNP NC
LR18-16PO-YBB-TM-H	PNP NO					5-36VDC
LR18-16PC-YBB-TM-H	PNP NC
LR18-16NO-YBB-TM-H	NPN NO
LR18-16NC-YBB-TM-H	NPN NC
LR18-16PS-YBB-TM-H	PNP NO&NC
LR18-16NS-YBB-TM-H	NPN NO&NC

LR18-20NO-YBA-TM-H	NPN,NO	20mm	M12 connector	200mA	Non-Shielded	10-30VDC	Nickled brass
LR18-20NC-YBA-TM-H	NPN,NC
LR18-20PO-YBA-TM-H	PNP,NO
LR18-20PC-YBA-TM-H	PNP,NC
LR18-20PS-YBA-TM-H	PNP NO&NC
LR18-20NS-YBA-TM-H	NPN NO&NC
LR18-20HO-YBD-TM-H	NO					10-60VDC
LR18-20HC-YBD-TM-H	NC
LR18-20NO-YBC-TM-H	NPN NO					10-55VDC
LR18-20NC-YBC-TM-H	NPN NC
LR18-20PO-YBC-TM-H	PNP NO
LR18-20PC-YBC-TM-H	PNP NC
LR18-20PO-YBB-TM-H	PNP NO					5-36VDC
LR18-20PC-YBB-TM-H	PNP NC
LR18-20NO-YBB-TM-H	NPN NO
LR18-20NC-YBB-TM-H	NPN NC
LR18-20PS-YBB-TM-H	PNP NO&NC
LR18-20NS-YBB-TM-H	NPN NO&NC

LR18-23NO-YBA-TM-H	NPN,NO	23mm	M12 connector	200mA	Non-Shielded	10-30VDC	Nickled brass
LR18-23NC-YBA-TM-H	NPN,NC
LR18-23PO-YBA-TM-H	PNP,NO
LR18-23PC-YBA-TM-H	PNP,NC
LR18-23PS-YBA-TM-H	PNP NO&NC
LR18-23NS-YBA-TM-H	NPN NO&NC
LR18-23HO-YBD-TM-H	NO					10-60VDC
LR18-23HC-YBD-TM-H	NC
LR18-23NO-YBC-TM-H	NPN NO					10-55VDC
LR18-23NC-YBC-TM-H	NPN NC
LR18-23PO-YBC-TM-H	PNP NO
LR18-23PC-YBC-TM-H	PNP NC
LR18-23PO-YBB-TM-H	PNP NO					5-36VDC
LR18-23PC-YBB-TM-H	PNP NC
LR18-23NO-YBB-TM-H	NPN NO
LR18-23NC-YBB-TM-H	NPN NC
LR18-23PS-YBB-TM-H	PNP NO&NC
LR18-23NS-YBB-TM-H	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHz
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series M18 Inductive Proximity Switch Data Sheet
