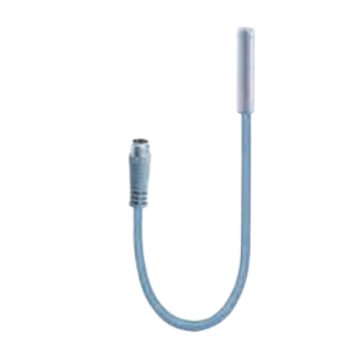

Inductive Proximity Sensor | LR08 Pre-wired Shielded Cylindrical M8 0.3m Cable M8 Connector | DADISICK

group name: Standard Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Inductive Proximity Sensor | LR08 Pre-wired Shielded Cylindrical M8 | LR08-01NO-ZAA-3EA-S, LR08-01NC-ZAA-3EA-S, LR08-01PO-ZAA-3EA-S, LR08-01PC-ZAA-3EA-S, LR08-01NS-ZAA-4EA-S, LR08-01PS-ZAA-4EA-S, LR08-01HO-ZAD-2EA-S, LR08-01HC-ZAD-2EA-S, LR08-01NO-ZAC-3EA-S, LR08-01NC-ZAC-3EA-S, LR08-01PO-ZAC-3EA-S, LR08-01PC-ZAC-3EA-S, LR08-01NO-ZAB-3EA-S, LR08-01NC-ZAB-3EA-S, LR08-01PO-ZAB-3EA-S, LR08-01PC-ZAB-3EA-S, LR08-01NS-ZAB-4EA-S, LR08-01PS-ZAB-4EA-S

Delivery clauses under the trade mode: CIP

update time: Tue, 04 Nov 2025 08:45:36 GMT

contact supplier

Paramtents

Size: Cylindrical M8
Detection range: 1mm
Case material: Stainless steel
Connection type: 0.3m cable M8 connector
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded
Detection range: 1mm
Case material: Stainless steel
Connection type: 0.3m oil-proof PVC cable 3 φ 3x0.15/3 φ 4x0.15+M8 connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Inductive Proximity Sensor M8 Pre-wired Shielded 0.3m Cable M8 Connector Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR08-01NO-ZAA-3EA-S	NPN NO	1mm	0.3m oil-proof PVC cable 3 φ 3x0.15/3 φ 4x0.15+M8 connector	200mA	Shielded	10-30VDC	Stainless steel
LR08-01NC-ZAA-3EA-S	NPN NC
LR08-01PO-ZAA-3EA-S	PNP NO
LR08-01PC-ZAA-3EA-S	PNP NC
LR08-01NS-ZAA-4EA-S	PNP NO&NC
LR08-01PS-ZAA-4EA-S	NPN NO&NC
LR08-01HO-ZAD-2EA-S	DC 2-wire NO					10-60VDC
LR08-01HC-ZAD-2EA-S	DC 2-wire NC
LR08-01NO-ZAC-3EA-S	NPN NO					10-55VCD
LR08-01NC-ZAC-3EA-S	NPN NC
LR08-01PO-ZAC-3EA-S	PNP NO
LR08-01PC-ZAC-3EA-S	PNP NC
LR08-01NO-ZAB-3EA-S	NPN NO					5-36VCD
LR08-01NC-ZAB-3EA-S	NPN NC
LR08-01PO-ZAB-3EA-S	PNP NO
LR08-01PC-ZAB-3EA-S	PNP NC
LR08-01NS-ZAB-4EA-S	PNP NO&NC
LR08-01PS-ZAB-4EA-S	PNP NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHZ
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series M8 Inductive Proximity Switch DataSheet
