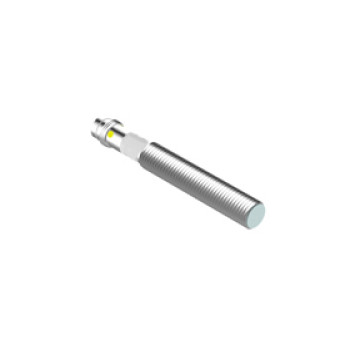

Inductive Proximity Sensor | LR08 Connector Shielded Cylindrical M8 Short Type M8 connector | DADISICK

group name: Standard Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Inductive Proximity Sensor | LR08 Connector Shielded Cylindrical M8 | LR08-01NO-YAA-EM-S, LR08-01NC-YAA-EM-S, LR08-01PO-YAA-EM-S, LR08-01PC-YAA-EM-S, LR08-01PS-YAA-EM-S, LR08-01NS-YAA-EM-S, LR08-01HO-YAD-EM-S, LR08-01HC-YAD-EM-S, LR08-01NO-YAC-EM-S, LR08-01NC-YAC-EM-S, LR08-01PO-YAC-EM-S, LR08-01PC-YAC-EM-S, LR08-01NO-YAB-EM-S, LR08-01NC-YAB-EM-S, LR08-01PO-YAB-EM-S, LR08-01PC-YAB-EM-S, LR08-01PS-YAB-EM-S, LR08-01NS-YAB-EM-S, LR08-02NO-YAA-EM-S, LR08-02NC-YAA-EM-S, LR08-02PO-YAA-EM-S, LR08-02PC-YAA-EM-S, LR08-02PS-YAA-EM-S, LR08-02NS-YAA-EM-S, LR08-02HO-YAD-EM-S, LR08-02HC-YAD-EM-S, LR08-02NO-YAC-EM-S, LR08-02NC-YAC-EM-S, LR08-02PO-YAC-EM-S, LR08-02PC-YAC-EM-S, LR08-02NO-YAB-EM-S, LR08-02NC-YAB-EM-S, LR08-02PO-YAB-EM-S, LR08-02PC-YAB-EM-S, LR08-02PS-YAB-EM-S, LR08-02NS-YAB-EM-S, LR08-03NO-YAA-EM-S, LR08-03NC-YAA-EM-S, LR08-03PO-YAA-EM-S, LR08-03PC-YAA-EM-S, LR08-03PS-YAA-EM-S, LR08-03NS-YAA-EM-S, LR08-03HO-YAA-EM-S, LR08-03HC-YAA-EM-S, LR08-03NO-YAC-EM-S, LR08-03NC-YAC-EM-S, LR08-03PO-YAC-EM-S, LR08-03PC-YAC-EM-S, LR08-03NO-YAB-EM-S, LR08-03NC-YAB-EM-S, LR08-03PO-YAB-EM-S, LR08-03PC-YAB-EM-S, LR08-03PS-YAB-EM-S, LR08-03NS-YAB-EM-S, LR08-04NO-YAA-EM-H, LR08-04NC-YAA-EM-H, LR08-04PO-YAA-EM-H, LR08-04PC-YAA-EM-H, LR08-04PS-YAA-EM-H, LR08-04NS-YAA-EM-H, LR08-04HO-YAD-EM-H, LR08-04HC-YAD-EM-H, LR08-04NO-YAC-EM-H, LR08-04NC-YAC-EM-H, LR08-04PO-YAC-EM-H, LR08-04PC-YAC-EM-H, LR08-04NO-YAB-EM-H, LR08-04NC-YAB-EM-H, LR08-04PO-YAB-EM-H, LR08-04PC-YAB-EM-H, LR08-04PS-YAB-EM-H, LR08-04NS-YAB-EM-H

Delivery clauses under the trade mode: CIP

update time: Tue, 04 Nov 2025 08:45:07 GMT

contact supplier

Paramtents

Size: Cylindrical M8
Detection range: 1mm-4mm
Case material: Stainless steel / Nickled brass
Connection type: M8 connector
Output method: NPN NC/NO, PNP NC/ NO，PNP NO&NC,NPN NO&NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded
Detection range: 1mm-4mm
Case material: stainless steel / Nickled brass
Connection type: M8 connector
Output method: NPN NC, NPN NO, PNP NC, PNP NO, PNP NO&NC,NPN NO&NC

Detailed

Inductive Proximity Sensor M8 Connector Short Type Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR08-01NO-YAA-EM-S	NPN NO	1mm	M8 connector	200mA	Shielded	10-30VDC	Stainless steel
LR08-01NC-YAA-EM-S	NPN NC
LR08-01PO-YAA-EM-S	PNP NO
LR08-01PC-YAA-EM-S	PNP NC
LR08-01PS-YAA-EM-S	PNP NO&NC
LR08-01NS-YAA-EM-S	NPN NO&NC
LR08-01HO-YAD-EM-S	DC 2-wireNO					10-60VDC
LR08-01HC-YAD-EM-S	DC 2-wireNC
LR08-01NO-YAC-EM-S	NPN NO					10-55VDC
LR08-01NC-YAC-EM-S	NPN NC
LR08-01PO-YAC-EM-S	PNP NO
LR08-01PC-YAC-EM-S	PNP NC
LR08-01NO-YAB-EM-S	NPN NO					5-36VDC
LR08-01NC-YAB-EM-S	NPN NC
LR08-01PO-YAB-EM-S	PNP NO
LR08-01PC-YAB-EM-S	PNP NC
LR08-01PS-YAB-EM-S	PNP NO&NC
LR08-01NS-YAB-EM-S	NPN NO&NC

LR08-02NO-YAA-EM-S	NPN NO	2mm	M8 connector	200mA	Shielded	10-30VDC	Stainless steel
LR08-02NC-YAA-EM-S	NPN NC
LR08-02PO-YAA-EM-S	PNP NO
LR08-02PC-YAA-EM-S	PNP NC
LR08-02PS-YAA-EM-S	PNP NO&NC
LR08-02NS-YAA-EM-S	NPN NO&NC
LR08-02HO-YAD-EM-S	DC 2-wireNO					10-60VDC
LR08-02HC-YADEM-S	DC 2-wireNC
LR08-02NO-YAB-EM-S	NPN NO					5-36VDC
LR08-02NC-YAB-EMS	NPN NC
LR08-02PO-YAB-EM-S	PNP NO
LR08-02PC-YAB-EM-S	PNP NC
LR08-02PS-YAB-EM-S	PNP NO&NC
LR08-02NS-YAB-EM-S	NPN NO&NC

LR08-03NO-YAA-EM-S	NPN NO	3mm	M8 connector	200mA	Shielded	10-30VDC	Stainless steel
LR08-03NC-YAA-EM-S	NPN NC
LR08-03PO-YAA-EM-S	PNP NO
LR08-03PC-YAA-EM-S	PNP NC
LR08-03PS-YAA-EM-S	PNP NO&NC
LR08-03NS-YAA-EM-S	NPN NO&NC
LR08-03HO-YAD-EM-S	DC 2-wire NO					10-60VDC
LR08-03HC-YAD-EM-S	DC 2-wire NC
LR08-03NO-YAC-EM-S	NPN NO					10-55VDC
LR08-03NC-YAC-EM-S	NPN NC
LR08-03PO-YAC-EM-S	PNP NO
LR08-03PC-YAC-EM-S	PNP NC
LR08-03NO-YAB-EM-S	NPN NO					5-36VDC
LR08-03NC-YAB-EM-S	NPN NC
LR08-03PO-YAB-EM-S	PNP NO
LR08-03PC-YAB-EM-S	PNP NC
LR08-03PS-YAB-EM-S	PNP NO&NC
LR08-03NS-YAB-EM-S	NPN NO&NC

LR08-04NO-YAA-EM-H	NPN NO	4mm	M8 connector	200mA	Shielded	10-30VDC	Nickled brass
LR08-04NC-YAA-EM-H	NPN NC
LR08-04PO-YAA-EM-H	PNP NO
LR08-04PC-YAA-EM-H	PNP NC
LR08-04PS-YAA-EM-H	PNP NO&NC
LR08-04NS-YAA-EM-H	NPN NO&NC
LR08-04HO-YAD-EM-H	DC 2-wire NO					10-60VDC
LR08-04HC-YAD-EM-H	DC 2-wire NC
LR08-04NO-YAC-EM-H	NPN NO					10-55VDC
LR08-04NC-YAC-EM-H	NPN NC
LR08-04PO-YAC-EM-H	PNP NO
LR08-04PC-YAC-EM-H	PNP NC
LR08-04NO-YAB-EM-H	NPN NO					5-36VDC
LR08-04NC-YAB-EM-H	NPN NC
LR08-04PO-YAB-EM-H	PNP NO
LR08-04PC-YAB-EM-H	PNP NC
LR08-04PS-YAB-EM-H	PNP NO&NC
LR08-04NS-YAB-EM-H	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHZ / 2KHZ / 1KHZ / 300HZ
Response time	0.1ms / 0.1ms / 0.2ms / 0.5ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series M8 Inductive Proximity Switch DataSheet
