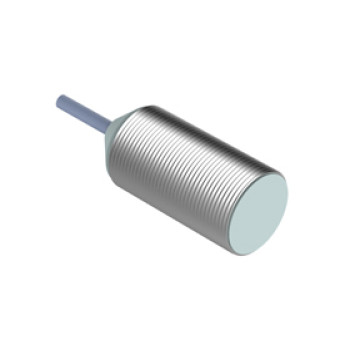

Inductive Proximity Sensor | LR30 Pre-wired Shielded Cylindrical M30 2M Cable | DADISICK

model: Standard Inductive Proximity Sensor | LR30 Pre-wired Shielded | LR30-10NO-ZAA-3A-H, LR30-10NC-ZAA-3A-H, LR30-10PO-ZAA-3A-H, LR30-10PC-ZAA-3A-H, LR30-10PS-ZAA-4A-H, LR30-10NS-ZAA-4A-H, LR30-10HO-ZAD-2A-H, LR30-10HC-ZAD-2A-H, LR30-10NO-ZAC-3A-H, LR30-10NC-ZAC-3A-H, LR30-10PO-ZAC-3A-H, LR30-10PC-ZAC-3A-H, LR30-10NO-ZAB-3A-H, LR30-10NC-ZAB-3A-H, LR30-10PO-ZAB-3A-H, LR30-10PC-ZAB-3A-H, LR30-10PS-ZAB-4A-H, LR30-10NS-ZAB-4A-H, LR30-16NO-ZAA-3A-H, LR30-16NC-ZAA-3A-H, LR30-16PO-ZAA-3A-H, LR30-16PC-ZAA-3A-H, LR30-16PS-ZAA-4A-H, LR30-16NS-ZAA-4A-H, LR30-16HO-ZAD-2A-H, LR30-16HC-ZAD-2A-H, LR30-16NO-ZAC-3A-H, LR30-16NC-ZAC-3A-H, LR30-16PO-ZAC-3A-H, LR30-16PC-ZAC-3A-H, LR30-16NO-ZAB-3A-H, LR30-16NC-ZAB-3A-H, LR30-16PO-ZAB-3A-H, LR30-16PC-ZAB-3A-H, LR30-16PS-ZAB-4A-H, LR30-16NS-ZAB-4A-H, LR30-22NO-ZAA-3A-H, LR30-22NC-ZAA-3A-H, LR30-22PO-ZAA-3A-H, LR30-22PC-ZAA-3A-H, LR30-22PS-ZAA-4A-H, LR30-22NS-ZAA-4A-H, LR30-22HO-ZAD-2A-H, LR30-22HC-ZAD-2A-H, LR30-22NO-ZAC-3A-H, LR30-22NC-ZAC-3A-H, LR30-22PO-ZAC-3A-H, LR30-22PC-ZAC-3A-H, LR30-22NO-ZAB-3A-H, LR30-22NC-ZAB-3A-H, LR30-22PO-ZAB-3A-H, LR30-22PC-ZAB-3A-H, LR30-22PS-ZAB-4A-H, LR30-22NS-ZAB-4A-H, LR30-25NO-ZAA-3A-H, LR30-25NC-ZAA-3A-H, LR30-25PO-ZAA-3A-H, LR30-25PC-ZAA-3A-H

contact supplier

Paramtents

Packging & Delivery

Briefing

Detection range: 10-25mm
Case material: Nickled brass
Connection type: 2M Cable
Output method: NPN NO/NC，PNP NO/NC

Detailed

Inductive Proximity Sensor M30 Pre-wired Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR30-10NO-ZAA-3A-H	NPN,NO	10mm	2M Cable	200mA	Shielded	10-30VDC	Nickled brass
LR30-10NC-ZAA-3A-H	NPN,NC
LR30-10PO-ZAA-3A-H	PNP,NO
LR30-10PC-ZAA-3A-H	PNP,NC
LR30-10PS-ZAA-4A-H	PNP NO&NC
LR30-10NS-ZAA-4A-H	NPN NO&NC
LR30-10HO-ZAD-2A-H	NO					10-60VDC
LR30-10HC-ZAD-2A-H	NC
LR30-10NO-ZAC-3A-H	NPN,NO					10-55VDC
LR30-10NC-ZAC-3A-H	NPN NC
LR30-10PO-ZAC-3A-H	PNP NO
LR30-10PC-ZAC-3A-H	PNP NC
LR30-10NO-ZAB-3A-H	NPN NO					5-36VDC
LR30-10NC-ZAB-3A-H	NPN NC
LR30-10PO-ZAB-3A-H	PNP NO
LR30-10PC-ZAB-3A-H	PNP NC
LR30-10PS-ZAB-4A-H	PNP NO&NC
LR30-10NS-ZAB-4A-H	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHz
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series M30

Inductive Proximity Switch Data Sheet
