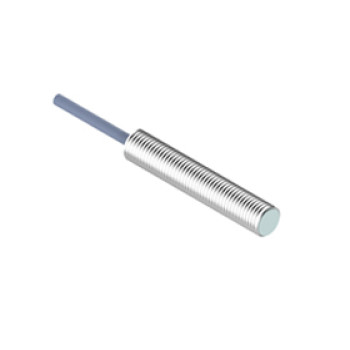

Inductive Proximity Sensor | LR08 Pre-wired Shielded Cylindrical M8 Short Type 2 Meter Cable | DADISICK

group name: Standard Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Inductive Proximity Sensor | LR08 Pre-wired Non-Shielded Cylindrical M8 | LR08-01NO-ZAA-3M-S, LR08-01NC-ZAA-3M-S, LR08-01PO-ZAA-3M-S, LR08-01PC-ZAA-3M-S, LR08-01NS-ZAA-4M-S, LR08-01PS-ZAA-4M-S, LR08-01HO-ZAD-2M-S, LR08-01HC-ZAD-2M-S, LR08-01NO-ZAC-3M-S, LR08-01NC-ZAC-3M-S, LR08-01PO-ZAC-3M-S, LR08-01PC-ZAC-3M-S, LR08-01NO-ZAB-3M-S, LR08-01NC-ZAB-3M-S, LR08-01PO-ZAB-3M-S, LR08-01PC-ZAB-3M-S, LR08-01PS-ZAB-4M-S, LR08-01NS-ZAB-4M-S, LR08-02NO-ZAA-3M-S, LR08-02NC-ZAA-3M-S, LR08-02PO-ZAA-3M-S, LR08-02PC-ZAA-3M-S, LR08-02NS-ZAA-4M-S, LR08-02PS-ZAA-4M-S, LR08-02HO-ZAD-2M-S, LR08-02HC-ZAD-2M-S, LR08-02NO-ZAC-3M-S, LR08-02NC-ZAC-3M-S, LR08-02PO-ZAC-3M-S, LR08-02PC-ZAC-3M-S, LR08-02NO-ZAB-3M-S, LR08-02NC-ZAB-3M-S, LR08-02PO-ZAB-3M-S, LR08-02PC-ZAB-3M-S, LR08-02PS-ZAB-4M-S, LR08-02NS-ZAB-4M-S, LR08-03NO-ZAA-3M-S, LR08-03NC-ZAA-3M-S, LR08-03PO-ZAA-3M-S, LR08-03PC-ZAA-3M-S, LR08-03NS-ZAA-4M-S, LR08-03PS-ZAA-4M-S, LR08-03HO-ZAD-2M-S, LR08-03HC-ZAD-2M-S, LR08-03NO-ZAC-3M-S, LR08-03NC-ZAC-3M-S, LR08-03PO-ZAC-3M-S, LR08-03PC-ZAC-3M-S, LR08-03NO-ZAB-3M-S, LR08-03NC-ZAB-3M-S, LR08-03PO-ZAB-3M-S, LR08-03PC-ZAB-3M-S, LR08-03PS-ZAB-4M-S, LR08-03NS-ZAB-4M-S, LR08-04NO-ZAA-3M-S, LR08-04NC-ZAA-3M-S, LR08-04PO-ZAA-3M-S, LR08-04PC-ZAA-3M-S, LR08-04NS-ZAA-4M-S, LR08-04PS-ZAA-4M-S, LR08-04HO-ZAD-2M-S, LR08-04HC-ZAD-2M-S, LR08-04NO-ZAC-3M-S, LR08-04NC-ZAC-3M-S, LR08-04PO-ZAC-3M-S, LR08-04PC-ZAC-3M-S, LR08-04NO-ZAB-3M-S, LR08-04NC-ZAB-3M-S, LR08-04PO-ZAB-3M-S, LR08-04PC-ZAB-3M-S, LR08-04PS-ZAB-4M-S, LR08-04NS-ZAB-4M-S

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 04:28:16 GMT

contact supplier

Paramtents

Size: Cylindrical M8
Detection range: 1mm-4mm
Case material: Stainless steel
Connection type: 2M cable
Output method: NPN NC/NO, PNP NC/ NO，PNP NO&NC,NPN NO&NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded
Detection range: 1mm-4mm
Case material: stainless steel
Connection type: 2M cable
Output method: NPN NC, NPN NO, PNP NC, PNP NO, PNP NO&NC,NPN NO&NC

Detailed

Inductive Proximity Sensor M8 Pre-wired Short Type Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR08-01NO-ZAA-3M-S	NPN NO	1mm	2M Cable	200mA	Shielded	10-30VDC	Stainless steel
LR08-01NC-ZAA-3M-S	NPN NC
LR08-01PO-ZAA-3M-S	PNP NO
LR08-01PC-ZAA-3M-S	PNP NC
LR08-01PS-ZAA-4M-S	PNP NO&NC
LR08-01NS-ZAA-4M-S	NPN NO&NC
LR08-01HO-ZAD-2M-S	DC 2-wireNO					10-60VDC
LR08-01HC-ZAD-2M-S	DC 2-wireNC
LR08-01NO-ZAB-3M-S	NPN NO					5-36VDC
LR08-01NC-ZAB-3M-S	NPN NC
LR08-01PO-ZAB-3M-S	PNP NO
LR08-01PC-ZAB-3M-S	PNP NC
LR08-01PS-ZAB-4M-S	PNP NO&NC
LR08-01NS-ZAB-4M-S	NPN NO&NC

LR08-02NO-ZAA-3M-S	NPN NO	2mm	2M Cable	200mA	Shielded	10-30VDC	Stainless steel
LR08-02NC-ZAA-3M-S	NPN NC
LR08-02PO-ZAA-3M-S	PNP NO
LR08-02PC-ZAA-3M-S	PNP NC
LR08-02PS-ZAA-4M-S	PNP NO&NC
LR08-02NS-ZAA-4M-S	NPN NO&NC
LR08-02HO-ZAD-2M-S	DC 2-wireNO					10-60VDC
LR08-02HC-ZAD-2M-S	DC 2-wireNC
LR08-02NO-ZAB-3M-S	NPN NO					5-36VDC
LR08-02NC-ZAB-3M-S	NPN NC
LR08-02PO-ZAB-3M-S	PNP NO
LR08-02PC-ZAB-3M-S	PNP NC
LR08-02PS-ZAB-4M-S	PNP NO&NC
LR08-02NS-ZAB-4M-S	NPN NO&NC

Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR08-03NO-ZAA-3M-S	NPN NO	3mm	2M Cable	200mA	Shielded	10-30VDC	Stainless steel
LR08-03NC-ZAA-3M-S	NPN NC
LR08-03PO-ZAA-3M-S	PNP NO
LR08-03PC-ZAA-3M-S	PNP NC
LR08-03PS-ZAA-4M-S	PNP NO&NC
LR08-03NS-ZAA-4M-S	NPN NO&NC
LR08-03HO-ZAD-2M-S	DC 2-wireNO					10-60VDC
LR08-03HC-ZAD-2M-S	DC 2-wireNC
LR08-03NO-ZAB-3M-S	NPN NO					5-36VDC
LR08-03NC-ZAB-3M-S	NPN NC
LR08-03PO-ZAB-3M-S	PNP NO
LR08-03PC-ZAB-3M-S	PNP NC
LR08-03PS-ZAB-4M-S	PNP NO&NC
LR08-03NS-ZAB-4M-S	NPN NO&NC

LR08-04NO-ZAA-3M-S	NPN NO	4mm	2M Cable	200mA	Shielded	10-30VDC	Stainless steel
LR08-04NC-ZAA-3M-S	NPN NC
LR08-04PO-ZAA-3M-S	PNP NO
LR08-04PC-ZAA-3M-S	PNP NC
LR08-04PS-ZAA-4M-S	PNP NO&NC
LR08-04NS-ZAA-4M-S	NPN NO&NC
LR08-04HO-ZAD-2M-S	DC 2-wireNO					10-60VDC
LR08-04HC-ZAD-2M-S	DC 2-wireNC
LR08-04NO-ZAB-3M-S	NPN NO					5-36VDC
LR08-04NC-ZAB-3M-S	NPN NC
LR08-04PO-ZAB-3M-S	PNP NO
LR08-04PC-ZAB-3M-S	PNP NC
LR08-04PS-ZAB-4M-S	PNP NO&NC
LR08-04NS-ZAB-4M-S	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHZ / 2KHZ / 1KHZ / 500HZ
Response time	0.1ms / 0.1ms / 0.2ms / 0.5ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series M8 Inductive Proximity Switch DataSheet
