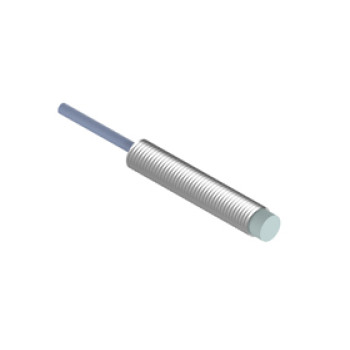

Inductive Proximity Sensor | LR08 Pre-wired Non-Shielded Cylindrical M8 Short Type 2 Meter Cable | DADISICK

group name: Standard Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Inductive Proximity Sensor | LR08 Pre-wired Non-Shielded Cylindrical M8 | LR08-02NO-ZBA-3M-S, LR08-02NC-ZBA-3M-S, LR08-02PO-ZBA-3M-S, LR08-02PC-ZBA-3M-S, LR08-02NS-ZBA-4M-S, LR08-02PS-ZBA-4M-S, LR08-02HO-ZBD-2M-S, LR08-02HC-ZBD-2M-S, LR08-02NO-ZBC-3M-S, LR08-02NC-ZBC-3M-S, LR08-02PO-ZBC-3M-S, LR08-02PC-ZBC-3M-S, LR08-02NO-ZBB-3M-S, LR08-02NC-ZBB-3M-S, LR08-02PO-ZBB-3M-S, LR08-02PC-ZBB-3M-S, LR08-02PS-ZBB-4M-S, LR08-02NS-ZBB-4M-S, LR08-04NO-ZBA-3M-S, LR08-04NC-ZBA-3M-S, LR08-04PO-ZBA-3M-S, LR08-04PC-ZBA-3M-S, LR08-04NS-ZBA-4M-S, LR08-04PS-ZBA-4M-S, LR08-04HO-ZBD-2M-S, LR08-04HC-ZBD-2M-S, LR08-04NO-ZBC-3M-S, LR08-04NC-ZBC-3M-S, LR08-04PO-ZBC-3M-S, LR08-04PC-ZBC-3M-S, LR08-04NO-ZBB-3M-S, LR08-04NC-ZBB-3M-S, LR08-04PO-ZBB-3M-S, LR08-04PC-ZBB-3M-S, LR08-04PS-ZBB-4M-S, LR08-04NS-ZBB-4M-S, LR08-06NO-ZBA-3M-S, LR08-06NC-ZBA-3M-S, LR08-06PO-ZBA-3M-S, LR08-06PC-ZBA-3M-S, LR08-06NS-ZBA-4M-S, LR08-06PS-ZBA-4M-S, LR08-06HO-ZBD-2M-S, LR08-06HC-ZBD-2M-S, LR08-06NO-ZBC-3M-S, LR08-06NC-ZBC-3M-S, LR08-06PO-ZBC-3M-S, LR08-06PC-ZBC-3M-S, LR08-06NO-ZBB-3M-S, LR08-06NC-ZBB-3M-S, LR08-06PO-ZBB-3M-S, LR08-06PC-ZBB-3M-S, LR08-06PS-ZBB-4M-S, LR08-06NS-ZBB-4M-S, LR08-08NO-ZBA-3M-S, LR08-08NC-ZBA-3M-S, LR08-08PO-ZBA-3M-S, LR08-08PC-ZBA-3M-S, LR08-08NS-ZBA-4M-S, LR08-08PS-ZBA-4M-S, LR08-08HO-ZBD-2M-S, LR08-08HC-ZBD-2M-S, LR08-08NO-ZBC-3M-S, LR08-08NC-ZBC-3M-S, LR08-08PO-ZBC-3M-S, LR08-08PC-ZBC-3M-S, LR08-08NO-ZBB-3M-S, LR08-08NC-ZBB-3M-S, LR08-08PO-ZBB-3M-S, LR08-08PC-ZBB-3M-S, LR08-08PS-ZBB-4M-S, LR08-08NS-ZBB-4M-S

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 04:26:24 GMT

contact supplier

Paramtents

Size: Cylindrical M8
Detection range: 2mm-8mm
Case material: Stainless steel
Connection type: 2M cable
Output method: NPN NC/NO, PNP NC/ NO，PNP NO&NC,NPN NO&NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Non-Shielded
Detection range: 2mm-8mm
Case material: stainless steel
Connection type: 2M cable
Output method: NPN NC, NPN NO, PNP NC, PNP NO, PNP NO&NC,NPN NO&NC

Detailed

Inductive Proximity Sensor M8 Pre-wired Short Type Non-Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR08-02NO-ZBA-3M-S	NPN NO	2mm	2M Cable	200mA	Non-Shielded	10-30VDC	Stainless steel
LR08-02NC-ZBA-3M-S	NPN NC
LR08-02PO-ZBA-3M-S	PNP NO
LR08-02PC-ZBA-3M-S	PNP NC
LR08-02PS-ZBA-4M-S	PNP NO&NC
LR08-02NS-ZBA-4M-S	NPN NO&NC
LR08-02HO-ZBD-2M-S	DC 2-wireNO					10-60VDC
LR08-02HC-ZBD-2M-S	DC 2-wireNC
LR08-02NO-ZBC-3M-S	NPN NO					10-55VDC
LR08-02NC-ZBC-3M-S	NPN NC
LR08-02PO-ZBC-3M-S	PNP NO
LR08-02PC-ZBC-3M-S	PNP NC
LR08-02NO-ZBB-3M-S	NPN NO					5-36VDC
LR08-02NC-ZBB-3M-S	NPN NC
LR08-02PO-ZBB-3M-S	PNP NO
LR08-02PC-ZBB-3M-S	PNP NC
LR08-02PS-ZBB-4M-S	PNP NO&NC
LR08-02NS-ZBB-4M-S	NPN NO&NC

LR08-04NO-ZBA-3M-S	NPN NO	4mm	2M Cable	200mA	Non-Shielded	10-30VDC	Stainless steel
LR08-04NC-ZBA-3M-S	NPN NC
LR08-04PO-ZBA-3M-S	PNP NO
LR08-04PC-ZBA-3M-S	PNP NC
LR08-04PS-ZBA-4M-S	PNP NO&NC
LR08-04NS-ZBA-4M-S	NPN NO&NC
LR08-04HO-ZBD-2M-S	DC 2-wireNO					10-60VDC
LR08-04HC-ZBD-2M-S	DC 2-wireNC
LR08-04NO-ZBB-3M-S	NPN NO					5-36VDC
LR08-04NC-ZBB-3M-S	NPN NC
LR08-04PO-ZBB-3M-S	PNP NO
LR08-04PC-ZBB-3M-S	PNP NC
LR08-04PS-ZBB-4M-S	PNP NO&NC
LR08-04NS-ZBB-4M-S	NPN NO&NC

LR08-06NO-ZBA-3M-S	NPN NO	6mm	2M Cable	200mA	Non-Shielded	10-30VDC	Stainless steel
LR08-06NC-ZBA-3M-S	NPN NC
LR08-06PO-ZBA-3M-S	PNP NO
LR08-06PC-ZBA-3M-S	PNP NC
LR08-06PS-ZBA-4M-S	PNP NO&NC
LR08-06NS-ZBA-4M-S	NPN NO&NC
LR08-06HO-ZBD-2M-S	DC 2-wire NO					10-60VDC
LR08-06HC-ZBD-2M-S	DC 2-wire NC
LR08-06NO-ZBC-3M-S	NPN NO					10-55VDC
LR08-06NC-ZBC-3M-S	NPN NC
LR08-06PO-ZBC-3M-S	PNP NO
LR08-06PC-ZBC-3M-S	PNP NC
LR08-06NO-ZBB-3M-S	NPN NO					5-36VDC
LR08-06NC-ZBB-3M-S	NPN NC
LR08-06PO-ZBB-3M-S	PNP NO
LR08-06PC-ZBB-3M-S	PNP NC
LR08-06PS-ZBB-4M-S	PNP NO&NC
LR08-06NS-ZBB-4M-S	NPN NO&NC

LR08-08NO-ZBA-3M-S	NPN NO	8mm	2M Cable	200mA	Non-Shielded	10-30VDC	Nickled brass
LR08-08NC-ZBA-3M-S	NPN NC
LR08-08PO-ZBA-3M-S	PNP NO
LR08-08PC-ZBA-3M-S	PNP NC
LR08-08PS-ZBA-4M-S	PNP NO&NC
LR08-08NS-ZBA-4M-S	NPN NO&NC
LR08-08HO-ZBD-2M-S	DC 2-wire NO					10-60VDC
LR08-08HC-ZBD-2M-S	DC 2-wire NC
LR08-08NO-ZBC-3M-S	NPN NO					10-55VDC
LR08-08NC-ZBC-3M-S	NPN NC
LR08-08PO-ZBC-3M-S	PNP NO
LR08-08PC-ZBC-3M-S	PNP NC
LR08-08NO-ZBB-3M-S	NPN NO					5-36VDC
LR08-08NC-ZBB-3M-S	NPN NC
LR08-08PO-ZBB-3M-S	PNP NO
LR08-08PC-ZBB-3M-S	PNP NC
LR08-08PS-ZBB-4M-S	PNP NO&NC
LR08-08NS-ZBB-4M-S	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHZ / 1KHZ / 500HZ / 300HZ
Response time	0.1ms / 0.2ms / 0.5ms / 0.5ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series M8 Inductive Proximity Switch DataSheet
