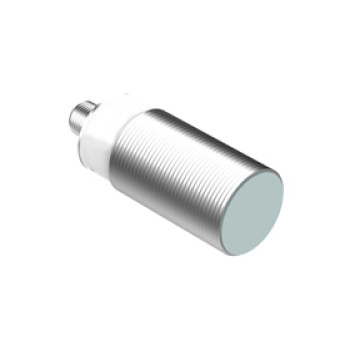

Inductive Proximity Sensor | LR30 Connector Shielded Cylindrical M30 M12 Connector | DADISICK

model: Standard Inductive Proximity Sensor | LR30 Connector Shielded | LR30-10NO-YAA-TA-H, LR30-10NC-YAA-TA-H, LR30-10PO-YAA-TA-H, LR30-10PC-YAA-TA-H, LR30-10PS-YAA-TA-H, LR30-10NS-YAA-TA-H, LR30-10HO-YAD-TA-H, LR30-10HC-YAD-TA-H, LR30-10NO-YAC-TA-H, LR30-10NC-YAC-TA-H, LR30-10PO-YAC-TA-H, LR30-10PC-YAC-TA-H, LR30-10NO-YAB-TA-H, LR30-10NC-YAB-TA-H, LR30-10PO-YAB-TA-H, LR30-10PC-YAB-TA-H, LR30-10PS-YAB-TA-H, LR30-10NS-YAB-TA-H, LR30-16NO-YAA-TA-H, LR30-16NC-YAA-TA-H, LR30-16PO-YAA-TA-H, LR30-16PC-YAA-TA-H, LR30-16PS-YAA-TA-H, LR30-16NS-YAA-TA-H, LR30-16HO-YAD-TA-H, LR30-16HC-YAD-TA-H, LR30-16NO-YAC-TA-H, LR30-16NC-YAC-TA-H, LR30-16PO-YAC-TA-H, LR30-16PC-YAC-TA-H, LR30-16NO-YAB-TA-H, LR30-16NC-YAB-TA-H, LR30-16PO-YAB-TA-H, LR30-16PC-YAB-TA-H, LR30-16PS-YAB-TA-H, LR30-16NS-YAB-TA-H, LR30-22NO-YAA-TA-H, LR30-22NC-YAA-TA-H, LR30-22PO-YAA-TA-H, LR30-22PC-YAA-TA-H, LR30-22PS-YAA-TA-H, LR30-22NS-YAA-TA-H, LR30-22HO-YAD-TA-H, LR30-22HC-YAD-TA-H, LR30-22NO-YAC-TA-H, LR30-22NC-YAC-TA-H, LR30-22PO-YAC-TA-H, LR30-22PC-YAC-TA-H, LR30-22NO-YAB-TA-H, LR30-22NC-YAB-TA-H, LR30-22PO-YAB-TA-H, LR30-22PC-YAB-TA-H, LR30-22PS-YAB-TA-H, LR30-22NS-YAB-TA-H, LR30-25NO-YAA-TA-H, LR30-25NC-YAA-TA-H, LR30-25PO-YAA-TA-H, LR30-25PC-YAA-TA-H

contact supplier

Paramtents

Packging & Delivery

Briefing

Detection range: 10-25mm
Case material: Nickled brass
Connection type: M12 connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Inductive Proximity Sensor M30 Connector Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR30-10NO-YAA-TA-H	NPN,NO	10mm	M12 connector	200mA	Shielded	10-30VDC	Nickled brass
LR30-10NC-YAA-TA-H	NPN,NC
LR30-10PO-YAA-TA-H	PNP,NO
LR30-10PC-YAA-TA-H	PNP,NC
LR30-10PS-YAA-TA-H	PNP NO&NC
LR30-10NS-YAA-TA-H	NPN NO&NC
LR30-10HO-YAD-TA-H	NO					10-60VDC
LR30-10HC-YAD-TA-H	NC
LR30-10NO-YAC-TA-H	NPN,NO					10-55VDC
LR30-10NC-YAC-TA-H	NPN,NC
LR30-10PO-YAC-TA-H	PNP,NO
LR30-10PC-YAC-TA-H	PNP,NC
LR30-10NO-YAB-TA-H	NPN,NO					5-36VDC
LR30-10NC-YAB-TA-H	NPN,NC
LR30-10PO-YAB-TA-H	PNP,NO
LR30-10PC-YAB-TA-H	PNP,NC
LR30-10PS-YAB-TA-H	PNP NO&NC
LR30-10NS-YAB-TA-H	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHz
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series M30

Inductive Proximity Switch Data Sheet
