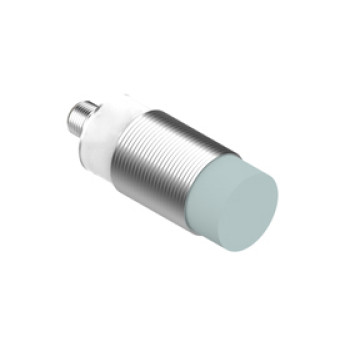

Inductive Proximity Sensor | LR30 Connector Non-shielded Cylindrical M30 M12 Connector | DADISICK

model: Standard Inductive Proximity Sensor | LR30 Connector Non-shielded | LR30-15NO-YBA-TA-H, LR30-15NC-YBA-TA-H, LR30-15PO-YBA-TA-H, LR30-15PC-YBA-TA-H, LR30-15PS-YBA-TA-Hl, LR30-15NS-YBA-TA-H, LR30-15HO-YBD-TA-H, LR30-15HC-YBD-TA-H, LR30-15NO-YBC-TA-H, LR30-15NC-YBC-TA-H, LR30-15PO-YBC-TA-H, LR30-15PC-YBC-TA-H, LR30-15NO-YBB-TA-H, LR30-15NC-YBB-TA-H, LR30-15PO-YBB-TA-H, LR30-15PC-YBB-TA-H, LR30-15PS-YBB-TA-H, LR30-15NS-YBB-TA-H, LR30-25NO-YBA-TA-H, LR30-25NC-YBA-TA-H, LR30-25PO-YBA-TA-H, LR30-25PC-YBA-TA-H, LR30-25PS-YBA-TA-H, LR30-25NS-YBA-TA-H, LR30-25HO-YBD-TA-H, LR30-25HC-YBD-TA-H, LR30-25NO-YBC-TA-H, LR30-25NC-YBC-TA-H, LR30-25PO-YBC-TA-H, LR30-25PC-YBC-TA-H, LR30-25NO-YBB-TA-H, LR30-25NC-YBB-TA-H, LR30-25PO-YBB-TA-H, LR30-25PC-YBB-TA-H, LR30-25PS-YBB-TA-H, LR30-25NS-YBB-TA-H, LR30-40NO-YBA-TA-H, LR30-40NC-YBA-TA-H, LR30-40PO-YBA-TA-H, LR30-40PC-YBA-TA-H, LR30-40PS-YBA-TA-H, LR30-40NS-YBA-TA-H, LR30-40HO-YBD-TA-H, LR30-40HC-YBD-TA-H, LR30-40NO-YBC-TA-H, LR30-40NC-YBC-TA-H, LR30-40PO-YBC-TA-H, LR30-40PC-YBC-TA-H, LR30-40NO-YBB-TA-H, LR30-40NC-YBB-TA-H, LR30-40PO-YBB-TA-H, LR30-40PC-YBB-TA-H, LR30-40PS-YBB-TA-H, LR30-40NS-YBB-TA-H, LR30-50NO-YBA-TA-H, LR30-50NC-YBA-TA-H, LR30-50PO-YBA-TA-H, LR30-50PC-YBA-TA-H

contact supplier

Paramtents

Packging & Delivery

Briefing

Detection range: 15-50mm
Case material: Nickled brass
Connection type: M12 connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Inductive Proximity Sensor M30 Connector Non-shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR30-15NO-YBA-TA-H	NPN,NO	15mm	M12 connector	200mA	Non-Shielded	10-30VDC	Nickled brass
LR30-15NC-YBA-TA-H	NPN,NC
LR30-15PO-YBA-TA-H	PNP,NO
LR30-15PC-YBA-TA-H	PNP,NC
LR30-15PS-YBA-TA-H	PNP NO&NC
LR30-15NS-YBA-TA-H	NPN NO&NC
LR30-15HO-YBD-TA-H	NO					10-60VDC
LR30-15HC-YBD-TA-H	NC
LR30-15NO-YBC-TA-H	NPN,NO					10-55VDC
LR30-15NC-YBC-TA-H	NPN,NC
LR30-15PO-YBC-TA-H	PNP,NO
LR30-15PC-YBC-TA-H	PNP,NC
LR30-15NO-YBB-TA-H	NPN,NO					5-36VDC
LR30-15NC-YBB-TA-H	NPN,NC
LR30-15PO-YBB-TA-H	PNP,NO
LR30-15PC-YBB-TA-H	PNP,NC
LR30-15PS-YBB-TA-H	PNP NO&NC
LR30-15NS-YBB-TA-H	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHz
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series M30

Inductive Proximity Switch Data Sheet
