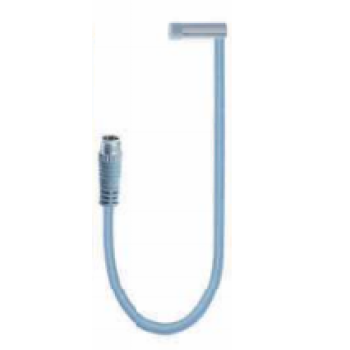

Inductive Proximity Sensor | LR6.5 Angle Pre-wired Non-Shielded Cylindrical Φ6.5mm Ultra Short Type 0.3m Cable M8 Connector | DADISICK

group name: Standard Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Inductive Proximity Sensor | LR6.5 Angle Pre-wired Non-Shielded Cylindrical Φ6.5mm | LR6.5-02NO-ZBA-3ER-S-T, LR6.5-02NC-ZBA-3ER-S-T, LR6.5-02PO-ZBA-3ER-S-T, LR6.5-02PC-ZBA-3ER-S-T, LR6.5-02PS-ZBA-4ER-S-T, LR6.5-02NS-ZBA-4ER-S-T, LR6.5-02NO-ZBB-3ER-S-T, LR6.5-02NC-ZBB-3ER-S-T, LR6.5-02PO-ZBB-3ER-S-T, LR6.5-02PC-ZBB-3ER-S-T, LR6.5-02PS-ZBB-4ER-S-T, LR6.5-02NS-ZBB-4ER-S-T

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 03:49:33 GMT

contact supplier

Paramtents

Size: Cylindrical φ6.5
Detection range: 2mm
Case material: Stainless steel
Connection type: 0.3m cable M8 connector
Output method: NPN NC/NO, PNP NC/ NO，PNP NO&NC,NPN NO&NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Non-Shielded
Detection range: 2mm
Case material: stainless steel
Connection type: 0.3m cable M8 connector
Output method: NPN NC, NPN NO, PNP NC, PNP NO, PNP NO&NC,NPN NO&NC

Detailed

Inductive Proximity Sensor φ6.5mm Ultra Short Type Angle Pre-wired Non-Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR6.5-02NO-ZBA-3ER-S-T	NPN NO	2mm	0.3m cable M8 connector	200mA	Non-Shielded	10-30VDC	Stainless steel
LR6.5-02NC-ZBA-3ER-S-T	NPN NC
LR6.5-02PO-ZBA-3ER-S-T	PNP NO
LR6.5-02PC-ZBA-3ER-S-T	PNP NC
LR6.5-02PS-ZBA-4ER-S-T	PNP NO&NC
LR6.5-02NS-ZBA-4ER-S-T	NPN NO&NC
LR6.5-02NO-ZBB-3ER-S-T	NPN NO					5-36VDC
LR6.5-02NC-ZBB-3ER-S-T	NPN NC
LR6.5-02PO-ZBB-3ER-S-T	PNP NO
LR6.5-02PC-ZBB-3ER-S-T	PNP NC
LR6.5-02PS-ZBB-4ER-S-T	PNP NO&NC
LR6.5-02NS-ZBB-4ER-S-T	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHZ
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard inductive φ6.5 series proximity switch Data Sheet
