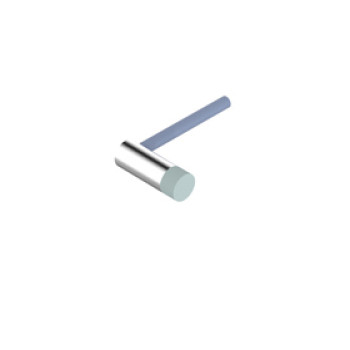

Inductive Proximity Sensor | LR6.5 Angle Pre-wired Non-Shielded Cylindrical Φ6.5mm Ultra Short Type 2M Cable | DADISICK

group name: Standard Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Inductive Proximity Sensor | LR6.5 Angle Pre-wired Non-Shielded Cylindrical Φ6.5mm | LR6.5-02NO-ZBA-3R-S-T, LR6.5-02NC-ZBA-3R-S-T, LR6.5-02PO-ZBA-3R-S-T, LR6.5-02PC-ZBA-3R-S-T, LR6.5-02PS-ZBA-4R-S-T, LR6.5-02NS-ZBA-4R-S-T, LR6.5-02NO-ZBB-3R-S-T, LR6.5-02NC-ZBB-3R-S-T, LR6.5-02PO-ZBB-3R-S-T, LR6.5-02PC-ZBB-3R-S-T, LR6.5-02PS-ZBB-4R-S-T, LR6.5-02NS-ZBB-4R-S-T,LR6.5-04NO-ZBA-3R-S-T, LR6.5-04NC-ZBA-3R-S-T, LR6.5-04PO-ZBA-3R-S-T, LR6.5-04PC-ZBA-3R-S-T, LR6.5-04PS-ZBA-4R-S-T, LR6.5-04NS-ZBA-4R-S-T, LR6.5-04NO-ZBB-3R-S-T, LR6.5-04NC-ZBB-3R-S-T, LR6.5-04PO-ZBB-3R-S-T, LR6.5-04PC-ZBB-3R-S-T, LR6.5-04PS-ZBB-4R-S-T, LR6.5-04NS-ZBB-4R-S-T, LR6.5-06NO-ZBA-3R-S-T, LR6.5-06NC-ZBA-3R-S-T, LR6.5-06PO-ZBA-3R-S-T, LR6.5-06PC-ZBA-3R-S-T, LR6.5-06PS-ZBA-4R-S-T, LR6.5-06NS-ZBA-4R-S-T, LR6.5-06NO-ZBB-3R-S-T, LR6.5-06NC-ZBB-3R-S-T, LR6.5-06PO-ZBB-3R-S-T, LR6.5-06PC-ZBB-3R-S-T, LR6.5-06PS-ZBB-4R-S-T, LR6.5-06NS-ZBB-4R-S-T, LR6.5-08NO-ZBA-3R-S-T, LR6.5-08NC-ZBA-3R-S-T, LR6.5-08PO-ZBA-3R-S-T, LR6.5-08PC-ZBA-3R-S-T, LR6.5-08PS-ZBA-4R-S-T, LR6.5-08NS-ZBA-4R-S-T, LR6.5-08NO-ZBB-3R-S-T, LR6.5-08NC-ZBB-3R-S-T, LR6.5-08PO-ZBB-3R-S-T, LR6.5-08PC-ZBB-3R-S-T, LR6.5-08PS-ZBB-4R-S-T, LR6.5-08NS-ZBB-4R-S-T

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 04:39:29 GMT

contact supplier

Paramtents

Size: Cylindrical φ6.5
Detection range: 2mm-8mm
Case material: Stainless steel
Connection type: 2M cable
Output method: NPN NC/NO, PNP NC/ NO，PNP NO&NC,NPN NO&NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Non-Shielded
Detection range: 2mm-8mm
Case material: stainless steel
Connection type: 2M cable
Output method: NPN NC, NPN NO, PNP NC, PNP NO, PNP NO&NC,NPN NO&NC

Detailed

Inductive Proximity Sensor φ6.5mm Ultra Short Type Angle Pre-wired Non-Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR6.5-02NO-ZBA-3R-S-T	NPN,NO	2mm	2M Cable	200mA	Non-Shielded	10-30VDC	Stainless steel
LR6.5-02NC-ZBA-3R-S-T	NPN,NC
LR6.5-02PO-ZBA-3R-S-T	PNP,NO
LR6.5-02PC-ZBA-3R-S-T	PNP,NC
LR6.5-02PS-ZBA-4R-S-T	PNP NO&NC
LR6.5-02NS-ZBA-4R-S-T	NPN NO&NC
LR6.5-02NO-ZBB-3R-S-T	NPN NO					5-36VDC
LR6.5-02NC-ZBB-3R-S-T	NPN NC
LR6.5-02PO-ZBB-3R-S-T	PNP NO
LR6.5-02PC-ZBB-3R-S-T	PNP NC
LR6.5-02PS-ZBB-4R-S-T	PNP NO&NC
LR6.5-02NS-ZBB-4R-S-T	NPN NO&NC

Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR6.5-04NO-ZBA-3R-S-T	NPN,NO	4mm	2M Cable	200mA	Non-Shielded	10-30VDC	Stainless steel
LR6.5-04NC-ZBA-3R-S-T	NPN,NC
LR6.5-04PO-ZBA-3R-S-T	PNP,NO
LR6.5-04PC-ZBA-3R-S-T	PNP,NC
LR6.5-04PS-ZBA-4R-S-T	PNP NO&NC
LR6.5-04NS-ZBA-4R-S-T	NPN NO&NC
LR6.5-04NO-ZBB-3R-S-T	NPN NO					5-36VDC
LR6.5-04NC-ZBB-3R-S-T	NPN NC
LR6.5-04PO-ZBB-3R-S-T	PNP NO
LR6.5-04PC-ZBB-3R-S-T	PNP NC
LR6.5-04PS-ZBB-4R-S-T	PNP NO&NC
LR6.5-04NS-ZBB-4R-S-T	NPN NO&NC

Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR6.5-06NO-ZBA-3R-S-T	NPN,NO	6mm	2M Cable	200mA	Non-Shielded	10-30VDC	Stainless steel
LR6.5-06NC-ZBA-3R-S-T	NPN,NC
LR6.5-06PO-ZBA-3R-S-T	PNP,NO
LR6.5-06PC-ZBA-3R-S-T	PNP,NC
LR6.5-06PS-ZBA-4R-S-T	PNP NO&NC
LR6.5-06NS-ZBA-4R-S-T	NPN NO&NC
LR6.5-06NO-ZBB-3R-S-T	NPN NO					5-36VDC
LR6.5-06NC-ZBB-3R-S-T	NPN NC
LR6.5-06PO-ZBB-3R-S-T	PNP NO
LR6.5-06PC-ZBB-3R-S-T	PNP NC
LR6.5-06PS-ZBB-4R-S-T	PNP NO&NC
LR6.5-06NS-ZBB-4R-S-T	NPN NO&NC

Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR6.5-08NO-ZBA-3R-S-T	NPN,NO	8mm	2M Cable	200mA	Non-Shielded	10-30VDC	Stainless steel
LR6.5-08NC-ZBA-3R-S-T	NPN,NC
LR6.5-08PO-ZBA-3R-S-T	PNP,NO
LR6.5-08PC-ZBA-3R-S-T	PNP,NC
LR6.5-08PS-ZBA-4R-S-T	PNP NO&NC
LR6.5-08NS-ZBA-4R-S-T	NPN NO&NC
LR6.5-08NO-ZBB-3R-S-T	NPN NO					5-36VDC
LR6.5-08NC-ZBB-3R-S-T	NPN NC
LR6.5-08PO-ZBB-3R-S-T	PNP NO
LR6.5-08PC-ZBB-3R-S-T	PNP NC
LR6.5-08PS-ZBB-4R-S-T	PNP NO&NC
LR6.5-08NS-ZBB-4R-S-T	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHz
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard inductive φ6.5 series proximity switch Data Sheet
