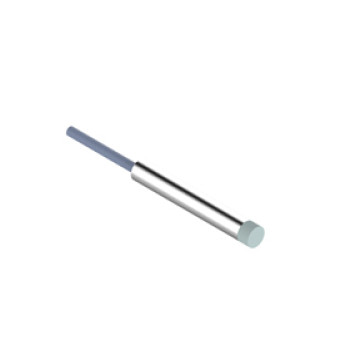

Inductive Proximity Sensor | LR6.5 Pre-wired Non-shielded Cylindrical Φ6.5mm Short Type 2M Cable| DADISICK

model: Standard Inductive Proximity Sensor | LR6.5 Pre-wired Non-shielded | LR6.5-02NO-ZBA-3M-S, LR6.5-02NC-ZBA-3M-S, LR6.5-02PO-ZBA-3M-S, LR6.5-02PC-ZBA-3M-S, LR6.5-02PS-ZBA-4M-S, LR6.5-02NS-ZBA-4M-S, LR6.5-02HO-ZBD-2M-S, LR6.5-02HC-ZBD-2M-S, LR6.5-02NO-ZBC-3M-S, LR6.5-02NC-ZBC-3M-S, LR6.5-02PO-ZBC-3M-S, LR6.5-02PC-ZBC-3M-S, LR6.5-02NO-ZBB-3M-S, LR6.5-02NC-ZBB-3M-S, LR6.5-02PO-ZBB-3M-S, LR6.5-02PC-ZBB-3M-S, LR6.5-02PS-ZBB-4M-S, LR6.5-02NS-ZBB-4M-S, LR6.5-04NO-ZBA-3M-S, LR6.5-04NC-ZBA-3M-S, LR6.5-04PO-ZBA-3M-S, LR6.5-04PC-ZBA-3M-S, LR6.5-04PS-ZBA-4M-S, LR6.5-04NS-ZBA-4M-S, LR6.5-04NO-ZBB-3M-S, LR6.5-04NC-ZBB-3M-S, LR6.5-04PO-ZBB-3M-S, LR6.5-04PC-ZBB-3M-S, LR6.5-04PS-ZBB-4M-S, LR6.5-04NS-ZBB-4M-S, LR6.5-06NO-ZBA-3M-S, LR6.5-06NC-ZBA-3M-S, LR6.5-06PO-ZBA-3M-S, LR6.5-06PC-ZBA-3M-S, LR6.5-06PS-ZBA-4M-S, LR6.5-06NS-ZBA-4M-S, LR6.5-06HO-ZBD-2M-S, LR6.5-06HC-ZBD-2M-S, LR6.5-06NO-ZBC-3M-S, LR6.5-06NC-ZBC-3M-S, LR6.5-06PO-ZBC-3M-S, LR6.5-06PC-ZBC-3M-S, LR6.5-06NO-ZBB-3M-S, LR6.5-06NC-ZBB-3M-S, LR6.5-06PO-ZBB-3M-S, LR6.5-06PC-ZBB-3M-S, LR6.5-06PS-ZBB-4M-S, LR6.5-06NS-ZBB-4M-S, LR6.5-08NO-ZBA-3M-S, LR6.5-08NC-ZBA-3M-S, LR6.5-08PO-ZBA-3M-S, LR6.5-08PC-ZBA-3M-S, LR6.5-08PS-ZBA-4M-S, LR6.5-08NS-ZBA-4M-S, LR6.5-08HO-ZBD-2M-S, LR6.5-08HC-ZBD-2M-S, LR6.5-08NO-ZBC-3M-S, LR6.5-08NC-ZBC-3M-S, LR6.5-08PO-ZBC-3M-S, LR6.5-08PC-ZBC-3M-S, LR6.5-08NO-ZBB-3M-S, LR6.5-08NC-ZBB-3M-S, LR6.5-08PO-ZBB-3M-S, LR6.5-08PC-ZBB-3M-S, LR6.5-08PS-ZBB-4M-S, LR6.5-08NS-ZBB-4M-S

contact supplier

Paramtents

Packging & Delivery

Briefing

Detection range: 2-8mm
Case material: Stainless steel
Connection type: 2 meter cable
Output method: NPN NO/NC，PNP NO/NC

Detailed

Inductive Proximity Sensor Φ6.5mm Short Type Pre-wired Non-shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR6.5-02NO-ZBA-3M-S	NPN,NO	2mm	2 meter cable	200mA	Non-Shielded	10-30VDC	Stainless steel
LR6.5-02NC-ZBA-3M-S	NPN,NC
LR6.5-02PO-ZBA-3M-S	PNP,NO
LR6.5-02PC-ZBA-3M-S	PNP,NC
LR6.5-02PS-ZBA-4M-S	PNP NO&NC
LR6.5-02NS-ZBA-4M-S	NPN NO&NC
LR6.5-02HO-ZBD-2M-S	DC 2-wire NO					10-60VDC
LR6.5-02HC-ZBD-2M-S	DC 2-wire NC
LR6.5-02NO-ZBC-3M-S	NPN NO					10-55VDC
LR6.5-02NC-ZBC-3M-S	NPN NC
LR6.5-02PO-ZBC-3M-S	PNP NO
LR6.5-02PC-ZBC-3M-S	PNP NC
LR6.5-02NO-ZBB-3M-S	NPN NO					5-36VDC
LR6.5-02NC-ZBB-3M-S	NPN NC
LR6.5-02PO-ZBB-3M-S	PNP,NO
LR6.5-02PC-ZBB-3M-S	PNP,NC
LR6.5-02PS-ZBB-4M-S	PNP NO&NC
LR6.5-02NS-ZBB-4M-S	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHz
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series φ6.5

Inductive Proximity Switch Data Sheet
