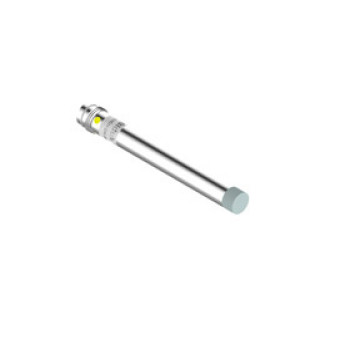

Inductive Proximity Sensor | LR6.5 Connector Non-Shielded Cylindrical Φ6.5mm Ultra Short Type M8 Connector | DADISICK

group name: Standard Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Inductive Proximity Sensor | LR6.5 Connector Non-Shielded Cylindrical Φ6.5mm | LR6.5-02NO-YBA-ER-S, LR6.5-02NC-YBA-ER-S, LR6.5-02PO-YBA-ER-S, LR6.5-02PC-YBA-ER-S, LR6.5-02PS-YBA-ER-S, LR6.5-02NS-YBA-ER-S, LR6.5-02NO-YBB-ER-S, LR6.5-02NC-YBB-ER-S, LR6.5-02PO-YBB-ER-S, LR6.5-02PC-YBB-ER-S, LR6.5-02PS-YBB-ER-S, LR6.5-02NS-YBB-ER-S, LR6.5-04NO-YBA-ER-S, LR6.5-04NC-YBA-ER-S, LR6.5-04PO-YBA-ER-S, LR6.5-04PC-YBA-ER-S, LR6.5-04PS-YBA-ER-S, LR6.5-04NS-YBA-ER-S, LR6.5-04NO-YBB-ER-S, LR6.5-04NC-YBB-ER-S, LR6.5-04PO-YBB-ER-S, LR6.5-04PC-YBB-ER-S, LR6.5-04PS-YBB-ER-S, LR6.5-04NS-YBB-ER-S, LR6.5-06NO-YBA-ER-S, LR6.5-06NC-YBA-ER-S, LR6.5-06PO-YBA-ER-S, LR6.5-06PC-YBA-ER-S, LR6.5-06PS-YBA-ER-S, LR6.5-06NS-YBA-ER-S, LR6.5-06NO-YBB-ER-S, LR6.5-06NC-YBB-ER-S, LR6.5-06PO-YBB-ER-S, LR6.5-06PC-YBB-ER-S, LR6.5-06PS-YBB-ER-S, LR6.5-06NS-YBB-ER-S, LR6.5-08NO-YBA-ER-H, LR6.5-08NC-YBA-ER-H, LR6.5-08PO-YBA-ER-H, LR6.5-08PC-YBA-ER-H, LR6.5-08PS-YBA-ER-H, LR6.5-08NS-YBA-ER-H, LR6.5-08NO-YBB-ER-H, LR6.5-08NC-YBB-ER-H, LR6.5-08PO-YBB-ER-H, LR6.5-08PC-YBB-ER-H, LR6.5-08PS-YBB-ER-H

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 04:32:59 GMT

contact supplier

Paramtents

Size: Cylindrical φ6.5
Detection range: 2mm-8mm
Case material: Stainless steel/Nickled brass
Connection type: M8 connector
Output method: NPN NC/NO, PNP NC/ NOPNP NO&NC,NPN NO&NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Non-Shielded
Detection range: 2mm-8mm
Case material: stainless steel / Nickled brass
Connection type: M8 connector
Output method: NPN NC, NPN NO, PNP NC, PNP NO, PNP NO&NC,NPN NO&NC

Detailed

Inductive proximity sensor Φ6.5mm Ultra Short type M8 connector Non-Shielded series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LR6.5-02NO-YBA-ER-S	NPN NO	2mm	M8 connector	200mA	Non-Shielded	10-30VDC	Stainless steel
LR6.5-02NC-YBA-ER-S	NPN NC
LR6.5-02PO-YBA-ER-S	PNP NO
LR6.5-02PC-YBA-ER-S	PNP NC
LR6.5-02PS-YBA-ER-S	PNP NO&NC
LR6.5-02NS-YBA-ER-S	NPN NO&NC
LR6.5-02NO-YBB-ER-S	NPN NO					5-36VDC
LR6.5-02NC-YBB-ER-S	NPN NC
LR6.5-02PO-YBB-ER-S	PNP NO
LR6.5-02PC-YBB-ER-S	PNP NC
LR6.5-02PS-YBB-ER-S	PNP NO&NC
LR6.5-02NS-YAB-ER-S	NPN NO&NC

LR6.5-04NO-YBA-ER-S	NPN NO	4mm	M8 connector	200mA	Non-Shielded	10-30VDC	Stainless steel
LR6.5-04NC-YBA-ER-S	NPN NC
LR6.5-04PO-YBA-ER-S	PNP NO
LR6.5-04PC-YBA-ER-S	PNP NC
LR6.5-04PS-YBA-ER-S	PNP NO&NC
LR6.5-04NS-YBA-ER-S	NPN NO&NC
LR6.5-04NO-YBB-ER-S	NPN NO					5-36VDC
LR6.5-04NC-YBB-ER-S	NPN NC
LR6.5-04PO-YBB-ER-S	PNP NO
LR6.5-04PC-YBB-ER-S	PNP NC
LR6.5-04PS-YBB-ER-S	PNP NO&NC
LR6.5-04NS-YBB-ER-S	NPN NO&NC

LR6.5-06NO-YBA-ER-S	NPN NO	6mm	M8 connector	200mA	Non-Shielded	10-30VDC	Stainless steel
LR6.5-06NC-YBA-ER-S	NPN NC
LR6.5-06PO-YBA-ER-S	PNP NO
LR6.5-06PC-YBA-ER-S	PNP NC
LR6.5-06PS-YBA-ER-S	PNP NO&NC
LR6.5-06NS-YBA-ER-S	NPN NO&NC
LR6.5-06NO-YBB-ER-S	NPN NO					5-36VDC
LR6.5-06NC-YBB-ER-S	NPN NC
LR6.5-06PO-YBB-ER-S	PNP NO
LR6.5-06PC-YBB-ER-S	PNP NC
LR6.5-06PS-YBB-ER-S	PNP NO&NC
LR6.5-06NS-YBB-ER-S	NPN NO&NC

LR6.5-08NO-YAA-ER-H	NPN NO	8mm	M8 connector	200mA	Non-Shielded	10-30VDC	Nickled brass
LR6.5-08NC-YAA-ER-H	NPN NC
LR6.5-08PO-YAA-ER-H	PNP NO
LR6.5-08PC-YAA-ER-H	PNP NC
LR6.5-08PS-YAA-ER-H	PNP NO&NC
LR6.5-08NS-YAA-ER-H	NPN NO&NC
LR6.5-08NO-YAB-ER-H	NPN NO					5-36VDC
LR6.5-08NC-YAB-ER-H	NPN NC
LR6.5-08PO-YAB-ER-H	PNP NO
LR6.5-08PC-YAB-ER-H	PNP NC
LR6.5-08PS-YAB-ER-H	PNP NO&NC
LR6.5-08NS-YAB-ER-H	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHZ / 1KHZ / 500HZ / 300HZ
Response time	0.1ms / 0.2ms / 0.5ms / 0.5ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard inductive φ6.5 series proximity switch Data Sheet
