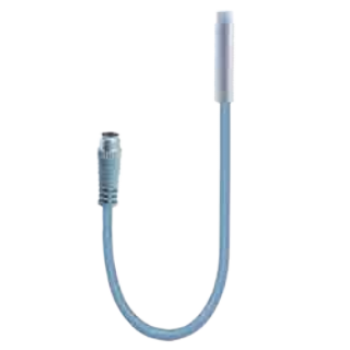

Inductive Proximity Sensor | LR6.5 Pre-wired Non-shielded Cylindrical Φ6.5mm 0.3m Cable M8 Connector | DADISICK

group name: Standard Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Inductive Proximity Sensor | LR6.5-02NO-ZBA-3EM-S, LR6.5-02NC-ZBA-3EM-S, LR6.5-02PO-ZBA-3EM-S, LR6.5-02PC-ZBA-3EM-S, LR6.5-02PS-ZBA-4EM-S, LR6.5-02NS-ZBA-4EM-S, LR6.5-02NO-ZBB-3EM-S, LR6.5-02NC-ZBB-3EM-S, LR6.5-02PO-ZBB-3EM-S, LR6.5-02PC-ZBB-3EM-S, LR6.5-02PS-ZBB-4EM-S, LR6.5-02NS-ZBB-4EM-S,LR6.5-02NO-ZBA-3ER-S, LR6.5-02NC-ZBA-3ER-S, LR6.5-02PO-ZBA-3ER-S, LR6.5-02PC-ZBA-3ER-S, LR6.5-02PS-ZBA-4ER-S, LR6.5-02NS-ZBA-4ER-S, LR6.5-02NO-ZBB-3ER-S, LR6.5-02NC-ZBB-3ER-S, LR6.5-02PO-ZBB-3ER-S, LR6.5-02PC-ZBB-3ER-S, LR6.5-02PS-ZBB-4ER-S, LR6.5-02NS-ZBB-4ER-S

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 04:46:10 GMT

contact supplier

Paramtents

Size: Φ6.5mm
Detection range: 1m-4mm
Case material: Stainless steel
Connection type: 0.3m oil-proof PVC cable 3 φ 3x0.15+M8 connector
Output method: NPN NC/NO, PNP NC/ NO，PNP NO&NC,NPN NO&NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Non-shielded
Detection range: 2mm
Case material: stainless steel
Connection type: 2M cable
Output method: NPN NC, NPN NO, PNP NC, PNP NO, PNP NO&NC,NPN NO&NC

Detailed

Inductive Proximity Sensor φ6.5mm Pre-wired Non-shielded 0.3m Cable M8 Connector Series Datasheet
LR6.5-02NO-ZBA-3EM-S	NPN NO	2mm	0.3m oil-proof PVC cable 3 φ 3x0.15+M8 connector	200mA	Non-shielded	10-30VDC	Stainless steel
LR6.5-02NC-ZBA-3EM-S	NPN NC
LR6.5-02PO-ZBA-3EM-S	PNP NO
LR6.5-02PC-ZBA-3EM-S	PNP NC
LR6.5-02PS-ZBA-4EM-S	PNP NO&NC
LR6.5-02NS-ZBA-4EM-S	NPN NO&NC
LR6.5-02NO-ZBB-3EM-S	NPN NO					5-36VDC
LR6.5-02NC-ZBB-3EM-S	NPN NC
LR6.5-02PO-ZBB-3EM-S	PNP NO
LR6.5-02PC-ZBB-3EM-S	PNP NC
LR6.5-02PS-ZBB-4EM-S	PNP NO&NC
LR6.5-02NS-ZBB-4EM-S	NPN NO&NC

LR6.5-02NO-ZBA-3ER-S	NPN NO	2mm	0.3m oil-proof PVC cable 3 φ 3x0.15+M8 connector	200mA	Non-shielded	10-30VDC	Stainless steel
LR6.5-02NC-ZBA-3ER-S	NPN NC
LR6.5-02PO-ZBA-3ER-S	PNP NO
LR6.5-02PC-ZBA-3ER-S	PNP NC
LR6.5-02PS-ZBA-4ER-S	PNP NO&NC
LR6.5-02NS-ZBA-4ER-S	NPN NO&NC
LR6.5-02NO-ZBB-3ER-S	NPN NO					5-36VDC
LR6.5-02NC-ZBB-3ER-S	NPN NC
LR6.5-02PO-ZBB-3ER-S	PNP NO
LR6.5-02PC-ZBB-3ER-S	PNP NC
LR6.5-02PS-ZBB-4ER-S	PNP NO&NC
LR6.5-02NS-ZBB-4ER-S	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHz
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard inductive φ6.5 series proximity switch Data Sheet
