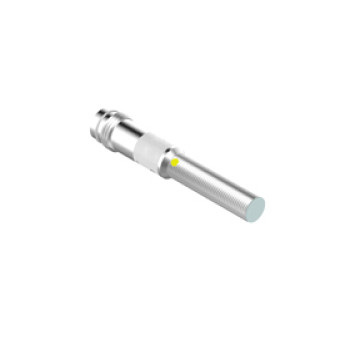

Inductive Proximity Sensor | LX05 Connector Shielded Cylindrical M5 | DADISICK
- group name
- Ultra-small Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Ultra-small Inductive Proximity Sensor | LX05 Connector Shielded Cylindrical M5 | LX05-0.8NO-YAA-EA-S, LX05-0.8NC-YAA-EA-S, LX05-0.8PO-YAA-EA-S, LX05-0.8PC-YAA-EA-S, LX05-01NO-YAA-EA-S, LX05-01NC-YAA-EA-S, LX05-01PO-YAA-EA-S, LX05-01PC-YAA-EA-S, LX05-1.5NO-YAA-EA-S, LX05-1.5NC-YAA-EA-S, LX05-1.5PO-YAA-EA-S, LX05-1.5PC-YAA-EA-S
- Delivery clauses under the trade mode
- CIP
- update time
- Sat, 15 Mar 2025 15:05:34 GMT
Paramtents
Size: Cylindrical M5
Detection range: 0.8-1.5mm
Case material: Stainless steel
Connection type: M8 Connector
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 0.8-1.5mm
Case material: Stainless steel
Connection type: M8 Connector
Output method: NPN NO/NC，PNP NO/NC
Case material: Stainless steel
Connection type: M8 Connector
Output method: NPN NO/NC，PNP NO/NC
Detailed
|
Inductive Proximity Sensor Ultra-small Cylindrical M5 LX05 Connector Shielded Series Technical Datasheet |
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LX05-0.8NO-YAA-EA-S | NPN,NO | 0.8mm | M8 Connector
| 200mA | Shielded | 10-30VDC | Stainless steel | |
LX05-0.8NC-YAA-EA-S | NPN,NC | |||||||
LX05-0.8PO-YAA-EA-S | PNP,NO | |||||||
LX05-0.8PC-YAA-EA-S | PNP,NC | |||||||
LX05-01NO-YAA-EA-S | NPN,NO | 1mm | ||||||
LX05-01NC-YAA-EA-S | NPN,NC | |||||||
LX05-01PO-YAA-EA-S | PNP,NO | |||||||
LX05-01PC-YAA-EA-S | PNP,NC | |||||||
LX05-1.5NO-YAA-EA-S | NPN,NO | 1.5mm | ||||||
LX05-1.5NC-YAA-EA-S | NPN,NC | |||||||
LX05-1.5PO-YAA-EA-S | PNP,NO | |||||||
LX05-1.5PC-YAA-EA-S | PNP,NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Response frequency | 2KHz | ||
Response time | 0.1ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PBT | ||
