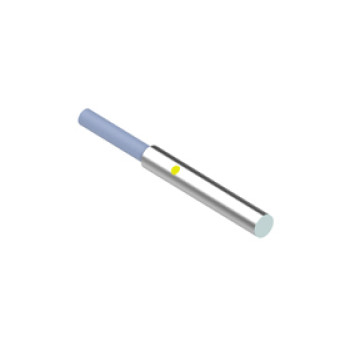

Inductive Proximity Sensor | LX04 Pre-wired Shielded Cylindrical Φ4mm | DADISICK

group name: Ultra-small Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Ultra-small Inductive Proximity Sensor | LX04 Pre-wired Shielded Cylindrical Φ4mm | LX04-0.8NO-ZAA-3A-S, LX04-0.8NC-ZAA-3A-S, LX04-0.8PO-ZAA-3A-S, LX04-0.8PC-ZAA-3A-S, LX04-01NO-ZAA-3A-S, LX04-01NC-ZAA-3A-S, LX04-01PO-ZAA-3A-S, LX04-01PC-ZAA-3A-S, LX04-1.5NO-ZAA-3A-S, LX04-1.5NC-ZAA-3A-S, LX04-1.5PO-ZAA-3A-S, LX04-1.5PC-ZAA-3A-S, LX04-0.8NO-ZAA-3EA-S, LX04-0.8NC-ZAA-3EA-S, LX04-0.8PO-ZAA-3EA-S, LX04-0.8PC-ZAA-3EA-S

Delivery clauses under the trade mode: CIP

update time: Mon, 17 Mar 2025 15:33:14 GMT

contact supplier

Paramtents

Size: Cylindrical Φ4mm
Detection range: 0.8-1.5mm
Case material: Stainless steel
Connection type: 2 meter cable, 0.3m oil-proof TPU cable
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Detection range: 0.8-1.5mm
Case material: Stainless steel
Connection type: 2 meter cable, 0.3m oil-proof TPU cable 3φ 3x0.15+M8 connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Inductive Proximity Sensor Ultra-small Cylindrical Φ4mm LX04 Pre-wired Shielded Series Technical Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LX04-0.8NO-ZAA-3A-S	NPN,NO	0.8mm	2 meter cable	200mA	Shielded	10-30VDC	Stainless steel
LX04-0.8NC-ZAA-3A-S	NPN,NC
LX04-0.8PO-ZAA-3A-S	PNP,NO
LX04-0.8PC-ZAA-3A-S	PNP,NC
LX04-01NO-ZAA-3A-S	NPN,NO	1mm
LX04-01NC-ZAA-3A-S	NPN,NC
LX04-01PO-ZAA-3A-S	PNP,NO
LX04-01PC-ZAA-3A-S	PNP,NC
LX04-1.5NO-ZAA-3A-S	NPN,NO	1.5mm
LX04-1.5NC-ZAA-3A-S	NPN,NC
LX04-1.5PO-ZAA-3A-S	PNP,NO
LX04-1.5PC-ZAA-3A-S	PNP,NC
LX04-0.8NO-ZAA-3EA-S	NPN,NO	0.8mm	0.3m oil-proof TPU cable 3φ 3x0.15+M8 connector
LX04-0.8NC-ZAA-3EA-S	NPN,NC
LX04-0.8PO-ZAA-3EA-S	PNP,NO
LX04-0.8PC-ZAA-3EA-S	PNP,NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Response frequency	2KHz
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Ultra-small Series Proximity Sensor Data Sheet
