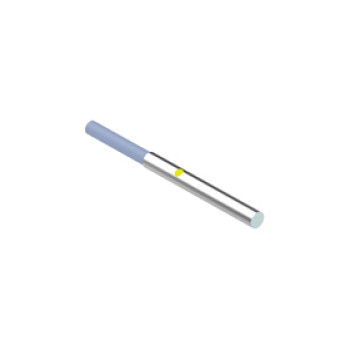

Inductive Proximity Sensor | LX03 Pre-wired Shielded Cylindrical Φ3mm | DADISICK

group name: Ultra-mini Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Ultra-small Inductive Proximity Sensor | LX03 Pre-wired Shielded Cylindrical Φ3mm | LX03-0.6NO-ZAA-3A-S, LX03-0.6NC-ZAA-3A-S, LX03-0.6PO-ZAA-3A-S, LX03-0.6PC-ZAA-3A-S, LX03-0.8NO-ZAA-3A-S, LX03-0.8NC-ZAA-3A-S, LX03-0.8PO-ZAA-3A-S, LX03-0.8PC-ZAA-3A-S, LX03-01NO-ZAA-3A-S, LX03-01NC-ZAA-3A-S, LX03-01PO-ZAA-3A-S, LX03-01PC-ZAA-3A-S, LX03-0.6NO-ZAA-3EA-S, LX03-0.6NC-ZAA-3EA-S, LX03-0.6PO-ZAA-3EA-S, LX03-0.6PC-ZAA-3EA-S

Delivery clauses under the trade mode: CIP

update time: Tue, 04 Nov 2025 15:00:34 GMT

contact supplier

Paramtents

Size: Cylindrical Φ3mm
Detection range: 0.6-1mm
Case material: Stainless steel
Connection type: 2 meter cable, 0.3m oil-proof TPU cable
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Detection range: 0.6-1mm
Case material: Stainless steel
Connection type: 2 meter cable, 0.3m oil-proof TPU cable 3φ 3x0.15+M8 connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Inductive Proximity Sensor Ultra-small Cylindrical Φ3mm LX03 Pre-wired Shielded Series Technical Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LX03-0.6NO-ZAA-3A-S	NPN,NO	0.6mm	2 meter cable	100mA	Shielded	10-30VDC	Stainless steel
LX03-0.6NC-ZAA-3A-S	NPN,NC
LX03-0.6PO-ZAA-3A-S	PNP,NO
LX03-0.6PC-ZAA-3A-S	PNP,NC
LX03-0.8NO-ZAA-3A-S	NPN,NO	0.8mm
LX03-0.8NC-ZAA-3A-S	NPN,NC
LX03-0.8PO-ZAA-3A-S	PNP,NO
LX03-0.8PC-ZAA-3A-S	PNP,NC
LX03-01NO-ZAA-3A-S	NPN,NO	1mm
LX03-01NC-ZAA-3A-S	NPN,NC
LX03-01PO-ZAA-3A-S	PNP,NO
LX03-01PC-ZAA-3A-S	PNP,NC
LX03-0.6NO-ZAA-3EA-S	NPN,NO	0.6mm	0.3m oil-proof TPU cable 3φ 3x0.15+M8 connector
LX03-0.6NC-ZAA-3EA-S	NPN,NC
LX03-0.6PO-ZAA-3EA-S	PNP,NO
LX03-0.6PC-ZAA-3EA-S	PNP,NC

Inductive Proximity Sensor Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	2KHz
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	120mA
Sensing surface material	PBT

Data sheet

Ultra-small Series Proximity Sensor Data Sheet
