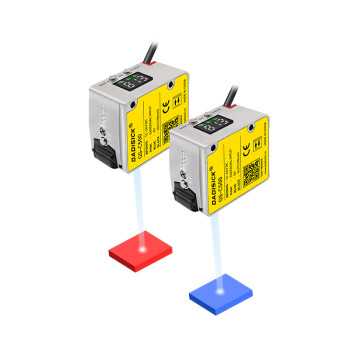

White LED Light Source Long-Range Color-Coded Sensors

group name: GS-C500 Series

Min Order: 1 piece

brand name: DADISICK

model: GS-C500 Series | GS-C500N, GS-C500P

Delivery clauses under the trade mode: CIP

update time: Mon, 10 Mar 2025 06:22:02 GMT

contact supplier

Paramtents

Detection distance: 50 to 500 mm
Response time: 200 μs/1 ms/10 ms/100 ms/500 ms
Light source: White LED
Power supply voltage: 10 to 30 VDC with ripple (P-P) 10%, Class 2 or LPS
I/O Control output: NPN open collector/PNP open collector
I/O External input: Tuning/stop transmission switch type

Packging & Delivery

Min Order1 piece

Briefing

Detection distance: 50 to 500 mm
Response time: 200 μs/1 ms/10 ms/100 ms/500 ms
Light source: White LED
Power supply voltage: 10 to 30 VDC with ripple (P-P) 10%, Class 2 or LPS
I/O Control output: NPN open collector/PNP open collector
I/O External input: Tuning/stop transmission switch type

Detailed

Color Sensors Technical Data

Dimensional Drawings/Wiring Diagrams

Downloads

Speciǁcations
Type		NPN	PNP
Model		GS-C500N	GS-C500P
Detection distance		50 to 500 mm
Minimum light spot diameter		Approx. φ3.5 mm (at 100 mm) Approx. φ9 mm (at 250 mm) Approx. φ20 mm (at 500 mm)
Response time		200 μs/1 ms/10 ms/100 ms/500 ms
Light source		White LED
Mutual interference reduction		Set different frequencies, up to 2 units
Power supply	Voltage	10 to 30 VDC with ripple (P-P) 10%, Class 2 or LPS
	Current Consumption	50 mA or less at 24 V 100 mA or less at 12 V
Timer		OFF/On delay/Off delay/Single
I/O	Control output	NPN open collector/PNP open collector switchable 30 V or less, 100 mA or less, residual voltage 2 V or less N.O./N.C. switchable
	External input	Tuning/stop transmission switch type
Protection circuit		Power reverse connection protection, power surge protection, output overcurrent protection, output surge protection
Ambient light		Incandescent lamp: 10000 Lx or less Sunlight: 20000 Lx or less
Ambient temperature		-20 to +50 ℃ (no freezing)
Relative humidity		35 to 85% RH (no condensation)
Impact resistance		1,000 m/s², 6 times in each direction of X, Y, and Z
Vibration resistance		10 to 55 Hz double amplitude 1.5 mm, 2 hours in each direction of X, Y, and Z
Protection level		IP65
Material		Casing: zinc casting (chrome plating), indicator cover: PC, button: stainless steel
Weight		128 g
