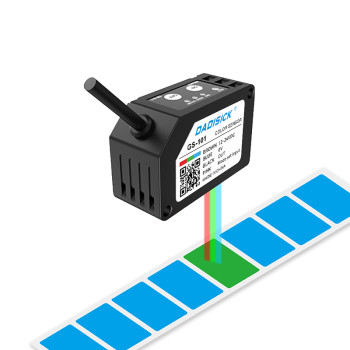

GS-101 Series Color Sensor | RGB Contrast Color Mark Sensor | DADISICK
- group name
- GS-101 Series
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- GS-101 Series | GS-101N, GS-101P
- Delivery clauses under the trade mode
- CIP
- update time
- Thu, 30 Jan 2025 04:39:34 GMT
Paramtents
Detection distance: 18 to 28 mm
Power supply voltage: 24 V DC ± 10% pulsation P-P below 10%
Mode switching input: Color pattern or Color mode
Output type: NPN or PNP
Cable: Standard length 2 m, 0.2 mm² 4-core rubber cable
Packging & Delivery
-
Min Order1 piece
Briefing
Detection distance: 18 to 28 mm
Power supply voltage: 24 V DC ± 10% pulsation P-P below 10%
Mode switching input: Color pattern or Color mode
Output type: NPN or PNP
Power supply voltage: 24 V DC ± 10% pulsation P-P below 10%
Mode switching input: Color pattern or Color mode
Output type: NPN or PNP
Detailed
Product Speciǁcation | |||||
|
Type
|
NPN |
PNP
|
|||
|
Model
|
GS-101N |
GS-101P
|
|||
|
Detection distance
|
18 to 28 mm |
||||
|
Power supply voltage
|
24 V DC ± 10% pulsation P-P below 10% |
||||
Electricity consumption | The power is below 850 mW (when the power supply voltage is 24 V, the consumed current is below 35 mA) | ||||
Mode switching input | Color pattern | Low (ON) 0 to 0.6 V DC
Outflow current below 0.5 mA
The input impedance is about 10 KΩ | Low (OFF) 0 to 0.6 V DC or open | ||
Color mode | High（OFF）12 to +24 V DC or open | High (on) 12 to + 24 V DC
Outǃow current below 3 mA
The input impedance is about 10 kΩ | |||
Output | NPN open collector transistor
· Maximum inflow current 50 mA
· Applied voltage below 30 V DC (between output and 0 V)
· Residual voltage below 1.5 V (when inflow current is 50 mA) * | PNP open collector transistor
· Maximum outflow current 50 mA
· Applied voltage below 30 V DC (between output and + V)
· Residual voltage below 1.5 V (when outflow current is 50 mA) * | |||
Output operation | Color pattern | ON when color code is detected | |||
Color mode | Consistent ON | ||||
Short circuit protection | Equipped (automatic recovery) | ||||
Reaction time | Below 200 μs | ||||
Ambient temperature | -10 to + 55 ℃, no freezing, no condensation | ||||
Ambient humidity | 35 to 85% RH, no coagulation | ||||
Light projecting element | Composite LED: Red/Green/Blue (Projection peak wavelength: 640 nm/525 nm/470 nm) | ||||
Material | Shell: PBT/Operation Panel: PC/Operation Button: Silicone/Lens: PC | ||||
Cable | 0.2 mm² 4-core rubber cable, standard length 2 m
Brown: + V / Black: Output / Pink: Mode Transition Input / Blue: 0 V | ||||
Weight | Approximately 104 g | ||||
