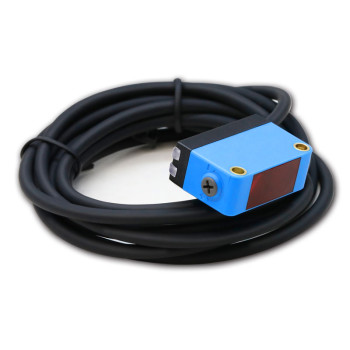

Background Suppression Photoelectric Sensor GB43 Series
- group name
- GB43 Series
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- GB43 Series | GB43-10N-ZAA, GB43-10P-ZAA, GB43-30N-ZAA, GB43-30P-ZAA, GFL43-30N-ZAA, GFL43-30P-ZAA
- Delivery clauses under the trade mode
- CIP
- update time
- Thu, 30 Jan 2025 22:45:18 GMT
Paramtents
Size: 21.5*33.3*12mm
Detection range: 30-100mm (adjustable)
Detection range: 30-300mm (adjustable)
Detection range: 30-300mm (adjustable)
Settings: 5-turn potentiometer
Switching frequency: 100Hz
Response time: 5ms
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 30-100mm (adjustable)
Detection range: 30-300mm (adjustable)
Detection range: 30-300mm (adjustable)
Switching frequency: 100Hz
Response time: 5ms
Detection range: 30-300mm (adjustable)
Detection range: 30-300mm (adjustable)
Switching frequency: 100Hz
Response time: 5ms
Detailed
Reflection method | Diffuse reflection (adjustable) |
|||
Model | NPN output | GB43-10N-ZAA | GB43-30N-ZAA | GFL43-30N-ZAA |
PNP output | GB43-10P-ZAA | GB43-30P-ZAA | GFL43-30P-ZAA | |
Detection distance | 30-100mm (adjustable) | 30-300mm (adjustable) | 30-300mm (adjustable) | |
Sensor principle | Photoelectric sensor | Photoelectric sensor | Laser sensor | |
Detection principle | Background suppression function | |||
Settings | 5-turn potentiometer | |||
Casing material | PC | |||
Light source | Visible LED red light | |||
Working voltage | 10-30VDC | |||
Maximum load | 150mA | |||
Switching frequency | 100Hz | |||
Response time | 5ms | |||
Protection level | IP65 | |||
Standard cable length | 2M | |||
Switch type | Normally open/normally closed | |||
Light spot size | 5-20mm The faDž her the distance, the larger the light spot | 2mm (focusing without diƺ usion) | ||
