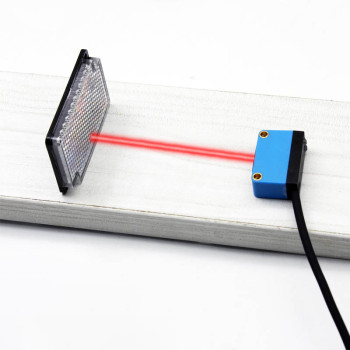

Universal Square Photoelectric Sensor GF43 Series

group name: GF43 Series

Min Order: 1 piece

brand name: DADISICK

model: GF43 Series | GF43-15N-ZAA, GF43-15P-ZAA, GF43-02N-ZCA, GF43-02P-ZCA, GF43-10N-ZBA, GF43-10P-ZBA

Delivery clauses under the trade mode: CIP

update time: Thu, 30 Jan 2025 22:50:39 GMT

contact supplier

Paramtents

Detection distance： 30-150mm, 2M, 10M
Power supply voltage： DC12-24V
No-load current： 9mA , 9mA, Reflection 11mA, reception 9mA
Light source： Visible LED red light
Operating temperature: -25~+55℃ (no icing, no condensation)
Protective structure： IP65
Connection method： Wire lead type (standard wire length 2m)

Packging & Delivery

Min Order1 piece

Briefing

Detection distance: 30-150mm, 2M, 10M
Power supply voltage: DC12-24V
No-load current：9mA , 9mA, Reflection 11mA, reception 9mA
Connection method：Wire lead type (standard wire length 2m)

Detailed

Photoelectric Sensors Technical Data

Dimensional Drawings/Wiring Diagrams

Downloads

Type		Diffuse reflection	Specular reflection	Direct reflection
Model	NPN output	GF43-15N-ZAA	GF43-02N-ZCA	GF43-10N-ZBA
	PNP output	GF43-15P-ZAA	GF43-02P-ZCA	GF43-10P-ZBA
Output action		ON OFF switchable	ON OFF switchable	ON OFF switchable
Detection object		100*100mm white drawing paper	Objects with a diameter of ≥5mm	Opaque objects with a diameter of ≥12mm
Detection distance		30-150mm (adjustable)	2M	10M
Dysfunction		20% or less of the detection distance	-	-
Current consumption		≤25mA or less	≤45mA or less	≤45mA
No-load current		9mA	9mA	Reflection 11mA, reception 9mA
Leakage current		Less than 0.01mA
Dimensions		322312(mm)
Light source		Visible LED red light
Power supply voltage		DC12-24V
Voltage drop		1V
Control output		Load power supply current 100mA or less (residual voltage 1V or less)
Protection circuit		Surge protection circuit, short circuit protection, reverse polarity protection
Response time		Action/recovery 1.0ms or less each
Display light		Green power indicator, red signal indicator
Ambient temperature		Action: -25~+55℃ (no icing, no condensation) Storage: -40℃~70℃ (no icing, no condensation)
Ambient illumination		Daylight: 10,000LX or less Incandescent lamp: 3,000LX or less
Ambient humidity		Action: -45%~85% (no icing, no condensation); Hold: -35%~95% (no icing, no condensation)
Voltage influence		When the rated power supply voltage fluctuates within ±15%, the detection distance remains within ±1%
Insulation barrier		More than 20Mu (DC500 megohmmeter) between the charging part and the shell
Dielectric strength		More than AC1000V at 50/60Hz 1min between charging part and shell
Vibration (durability)		10~55Hz, 1.5mm double amplitude, 2 hours in X.Y.Z direction
Impact (durability)		500m/S², 10 times in X, Y, Z axis direction
Protective structure		IP65
Connection method		Wire lead type (standard wire length 2m)
Casing material		PC
