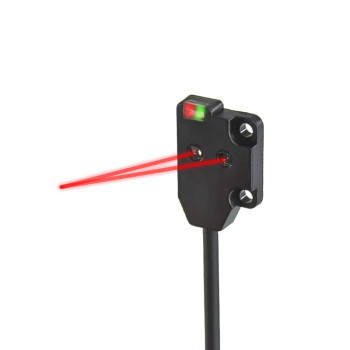

Photoelectric Sensor Ultra-thin Micro GP13 Series

group name: GP13 Series

Min Order: 1 piece

brand name: DADISICK

model: GP13 Series | GP13-03N-ZAA, GP13-03P-ZAA, GP13-D30N-ZBA, GP13-D30P-ZBA, GP13-D50N-ZBA, GP13-D50P-ZBA, GP13-L30N-ZBA, GP13-L30P-ZBA, GP13-L50N-ZBA,GP13-L50P-ZBA

Delivery clauses under the trade mode: CIP

update time: Sat, 18 Jan 2025 15:40:32 GMT

contact supplier

Paramtents

Detection distance： 2-30mm,300mm,500mm,300mm,500mm
Response time: 1ms or less (action/reset)
Power supply voltage: 12~24V DC ±10%
Operating temperature: -25~+55℃
Detection object: Ф2mm opaque object
Protection structure: IP64

Packging & Delivery

Min Order1 piece

Briefing

Detection distance：2-30mm,300mm,500mm,300mm,500mm
Power supply voltage:12~24V DC ±10%
Operating temperature:-25~+55℃
Connection method：Wire lead type (2m）

Detailed

Photoelectric Sensors Technical Data

Dimensional Drawings/Wiring Diagrams

Downloads

Detection method		Diffuse reflection	Through reflection
		Front detection	Front detection		Side detection
Model	NPN Type	GP13-03N-ZAA	GP13-D30N-ZBA	GP13-D50N-ZBA	GP13-L30N-ZBA	GP13-L50N-ZBA
	PNP Type	GP13-03P-ZAA	GP13-D30P-ZBA	GP13-D50P-ZBA	GP13-L30P-ZBA	GP13-L50P-ZBA
Detection distance		2~30 mm (White paper)	300 mm	500 mm	300 mm	500 mm
Detection object		Ф2mm opaque object
Dysfunction		Less than 15% of the operating distance	/
Response time		1ms or less (action/reset)
Light-emitting element		Red LED
Power supply voltage		12~24V DC ±10%
Current consumption		25mA or less
Indicator light		Output indicator: red, stability indicator: green
Protection circuit		Reverse connection protection, short circuit protection
Protection structure		IP64
Ambient illumination		Incandescent lamp: 3000lx or less, sunlight: 10000Ix or less
Ambient temperature		-25~+55℃
Ambient humidity		35~85%RH
Vibration resistance		Frequency 10~500Hz, double amplitude 3mm (MAX: 20G), 2 hours each in X, Y and Z directions
Impact resistance		Acceleration 500m/s² (about 50G), 3 times each in X, Y and Z directions
Connection method		Wire lead type (2m）
Casing		Casing: ABS
