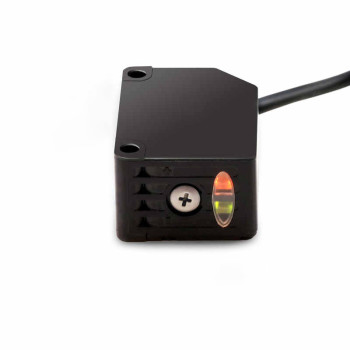

Background Suppression Photoelectric Sensor DK-GB43 Series
- group name
- DK-GB43 Series
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- DK-GB43 Series | DK-GB43-100N-ZAA, DK-GB43-100P-ZAA
- Delivery clauses under the trade mode
- CIP
- update time
- Thu, 21 May 2026 10:46:35 GMT
Paramtents
Shell shape (light beam exit)： Square
Maximum detection distance： 30-1500mm
Stable detection distance： Stable detection distance
Power supply voltage： 12-24V DC
Operating temperature: -25+50°C
Switch output： NPN/PNP
Shell material： Plastic, ABS
Packging & Delivery
-
Min Order1 piece
Briefing
Maximum detection distance: 30-1500mm
Shell material: Plastic, ABS
Connection type: Cable, 4 cores, 2m
Shell material: Plastic, ABS
Connection type: Cable, 4 cores, 2m
Detailed
Background Suppression Photoelectric Sensor GB43 Series |
||
Model | DK-GB43-100N-ZAA | DK-GB43-100P-ZAA |
Sensor principle | Diffuse reflection photoelectric sensor, background suppression function | |
Shell shape (light beam exit) | Square | |
Maximum detection distance | 30-1500mm | |
Stable detection distance | 60-1000mm | |
Light source type | Infrared light | |
Light spot size (distance) | Φ10-40mm | |
Power supply voltage | 12-24V DC | |
Light exposure or not | Visible red light | |
No-load current | 5 mA | |
Switch output | NPN/PNP | |
Switch type | Normally open and normally closed wiring switch | |
Output current | ≤50 mA | |
Response time | 2ms | |
Switching frequency | 450Hz | |
Connection type | Cable, 4 cores, 2m | |
Wire material | PVC | |
Protection circuit | Reverse polarity protection, 1 load short circuit | |
Protection structure | IP64 | |
Ambient operating temperature | -25+50°C | |
Ambient storage temperature | -25+70°C | |
Shell material | Plastic, ABS | |
Optical element | Plastic, PMMA | |
