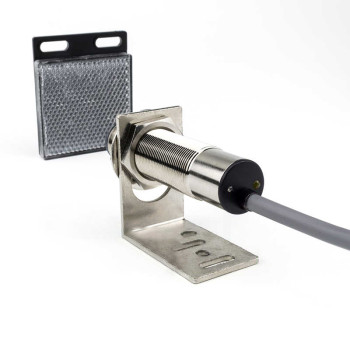

Photoelectric Sensors Retro-reflective Sensors GM18 Series
- group name
- GM18 Series
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- GM18 Series | GM18-200, GM18-300
- Delivery clauses under the trade mode
- CIP
- update time
- Thu, 30 Jan 2025 22:30:34 GMT
Paramtents
Size: M18 x 73 mm
Detection range: 2000 mm, 3000 mm
Material: Nickel-copper alloy
Connection type: 3pin/4pin with 2 M cable
Operating temperature: -15℃ ~ +55℃, no freezing
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 2000 mm, 3000 mm
Material: Nickel-copper alloy
Connection type: 3pin/4pin with 2M cable
Material: Nickel-copper alloy
Connection type: 3pin/4pin with 2M cable
Detailed
|
Reflection method
|
Retro-reflective
|
|
|
Model
|
GM18-200
|
GM18-300
|
|
Detection Distance
|
2000 mm
|
3000 mm
|
|
Output Mode
|
NPN NO / NC, PNP NO / NC
|
|
Repeat Accuracy | ＜5% | |
Switch Mode | L.on (light-incoming action) / D.on (light-blocking action) switchable | |
Indicator Light | Yellow LED | |
Response Time | <5 ms | |
Operating Voltage | 10 ~ 30 V DC | |
Consumption Current | <30 mA | |
Load Current | <200 mA | |
Operating Temperature | -15℃ ~ +55℃, no freezing | |
Environmental Humidity | 35% ~ 95% RH, no condensation | |
Protection Circuit | Reverse polarity protection/short circuit protection/anti-interference protection | |
Protection Level | IP66 | |
Wire Outlet Method | 3pin/4pin with 2 M cable | |
Material | Nickel-copper alloy | |
Light Source | Invisible infrared light (880 nm) | |
