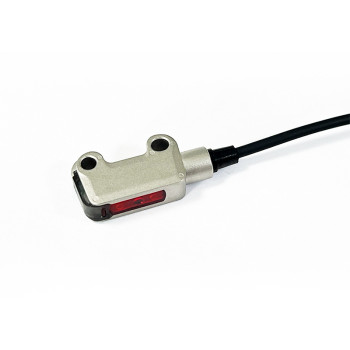

Photoelectric Sensor Ultra-small Laser Sensor GFS Series
- group name
- GFS Series
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- GFS Series | GFS-51N-ZAA, GFS-51P-ZAA, GFS-51N-ZBA, GFS-51P-ZBA
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 08:53:12 GMT
Paramtents
Size: 28.4*13*7.5 mm
Detection range: 2-50mm
Detection range: 2000mm
Casing material: SUS316L
Connection type: Wire lead type (standard wire length 2m)
Operating temperature: -20~+60°C
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 2-50mm
Detection range: 2000mm
Casing material: SUS316L
Connection type: Wire lead type (standard wire length 2m)
Detection range: 2000mm
Casing material: SUS316L
Connection type: Wire lead type (standard wire length 2m)
Detailed
Reflection method | Diffuse | Through-beam |
|
Model | NPN output | GFS-51N-ZAA | GFS-51N-ZBA |
PNP output | GFS-51P-ZAA | GFS-51P-ZBA | |
Detection Distance | 2-50mm | 2000mm | |
No-load current | ≤15mA | 30mA max | |
Light spot size | ф4mm | ф3.5mm (Distance is 500mm), ф7mm (Distance is 1000mm) | |
Hysteresis | Less than 20% of the detection distance | ||
Light source (wavelength) | Red LED (650nm) | Laser | |
Power supply voltage | DC 12~24V | ||
Response frequency | 1ms | ||
Ambient temperature | -20~+60°C | ||
Ambient humidity | 30~95% | ||
Temperature/humidity | -20~+60°C/30%~95% | ||
Vibration (durability) | 10~55Hz, 1.5mm double amplitude, up to 1h in X, Y, Z directions | ||
Impact (durability) | 500m/s² double amplitude, 3 times in X, Y, Z directions | ||
Protection level | IP65 | ||
Protection circuit | Positive and negative reverse connection protection, load shoDž circuit protection | ||
Output indicator | Red LED | ||
Power indicator | Green LED | ||
NO / NC mode | Normally open (light-incoming action)/normally closed (light-shielding action) mode optional | ||
Connection method | Wire lead type (standard wire length 2m) | ||
Casing material | SUS316L | ||
