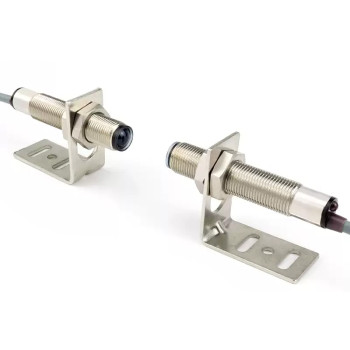

Photoelectric Sensors Through-beam GM12 Series
- group name
- GM12 Series
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- GM12 Series | GM12-200, GM12-500
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 15:05:15 GMT
Paramtents
Size: Cylindrical M12 mm
Detection range: 2000 mm, 5000 mm
Material: Nickel-copper alloy
Connection type: 3pin/4pin with 2M cable
Operating temperature: -15℃~+55℃, no freezing
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 2000 mm, 5000 mm
Material: Nickel-copper alloy
Connection type: 3pin/4pin with 2M cable
Material: Nickel-copper alloy
Connection type: 3pin/4pin with 2M cable
Detailed
Reflection method | Through-beam |
|
Model | GM12-200 | GM12-500 |
Detection Distance | 2000 mm | 5000 mm |
Output Mode | NPN NO / NC, PNP NO / NC | |
Repeat Accuracy | ＜5% | |
Switch Mode | L.on (light-incoming action) / D.on (light-blocking action) switchable | |
Indicator Light | Yellow LED | |
Response Time | <5ms | |
Operating Voltage | 10~30V DC | |
Consumption Current | <30mA | |
Load Current | <200mA | |
Operating Temperature | -15℃~+55℃, no freezing | |
Environmental Humidity | 35%~95%RH, no condensation | |
Protection Circuit | Reverse polarity protection/short circuit protection/anti-interference protection | |
Protection Level | IP66 | |
Wire Outlet Method | 3pin/4pin with 2M cable | |
Material | Nickel-copper alloy | |
Light Source | Invisible infrared light (880nm) | |
