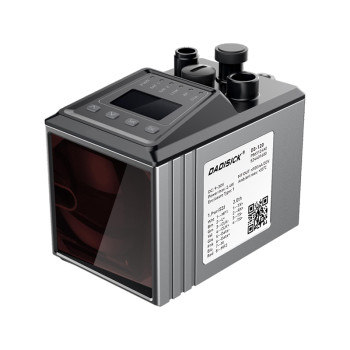

DS-80 | Distance Sensor High Precision Sensor | DADISICK
- group name
- DS Series Long Distance Measuring Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- DS Series | DS-80
- Delivery clauses under the trade mode
- CIP
- update time
- Thu, 21 Nov 2024 20:48:41 GMT
Paramtents
Measuring frequency: 1000Hz
Data transmission interface: SSl, Ethernet 100 BASE-TX
Laser source: Red laser (visible light)
Measuring distance 80m
Measurement resolution: 0.1 mm
Power supply: DC 9V...30V
Power consumption: 2.4W(MAX)
Protection grade: IP65
Packging & Delivery
-
Min Order1 piece
Briefing
Measuring frequency: 1000Hz
Data transmission interface: SSl, Ethernet 100 BASE-TX
Measuring distance: 80m
Measurement accuracy: ±2 mm
Data transmission interface: SSl, Ethernet 100 BASE-TX
Measuring distance: 80m
Measurement accuracy: ±2 mm
Detailed
|
Basic information
|
|||
Models | DS-80 | DS-120 | DS-200 |
Measuring range | 80m | 120m | 200m |
Typical value of spot size | 100mm(@80m) | 150mm(@120m) | 245mm(@200m) |
Measurement accuracy | ±2 mm | ||
Repeat accuracy | 1mm | ||
Measurement frequency | 1000Hz | ||
Measurement resolution | 0.1mm | ||
Maximum movement rate | 15m/s | ||
|
Optoelectronic characteristics
|
|||
Power supply voltage | DC 9V...30V | ||
Working current | 0.2 A/12V DC |
||
Laser source | Red laser (visible light) | ||
Power consumption | 2.4W(MAX) | ||
|
Optoelectronic characteristics
|
|||
Data transmission interface | SSl、Ethernet 100 BASE-TX | ||
Indicator light | PWR indicator, MF1/MF2 status, LNK indicator, BUS indicator |
||
Display screen | OLED screen (128*64 pixels) | ||
Network interface | M12/4-core/D-type female straight connector | ||
Power supply/SSI interface | M12/8-core/A-type male straight connector | ||
Ambient light resistance | ≤100,000lx | ||
Working environment temperature | -10℃~+55℃ | ||
Storage temperature | -30℃~+75°C | ||
Humidity | <80% | ||
Protection level | IP65 | ||
Dimensions | 123*69.5*90 mm | ||
Weight | 600g (without wire) | ||
