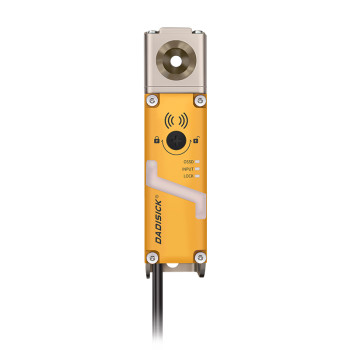

OX-D6｜The Safety Switch Devices with Locking Function｜DADISICK
- group name
- OX-D6 Series
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- OX-D6
- Delivery clauses under the trade mode
- CIP
- update time
- Thu, 21 Nov 2024 21:27:53 GMT
Paramtents
Lock method: Mechanical lock/electromagnetic lock
Safety output: NPN*2/PNP*2
Response time: 100ms (independent work)
Lock holding force Fzh: ≥2000N
Mechanical durability: >1 million times (door operation speed 1m/s)
Output type: Transistor output x2
Operating voltage: DC24V±15%
Rated power 4.6W (no load)
Packging & Delivery
-
Min Order1 piece
Briefing
Used for monitoring places such as safety doors and windows.
Detailed
TECHNICAL DATA
Safety Interlock Switches Electrical Parameters |
|||
Control output (OSSD output) |
Output type
|
Transistor output x2
|
|
|
Maximum load current
|
≤200mA
|
||
Residual voltage (ON) | <2.5V@200mA | ||
Voltage when OFF | ≤2V@cable 5m | ||
Leakage current | ≤0.5mA | ||
Maximum load capacity | 2.2uF | ||
Load connection resistance | ≤2.5Ω | ||
AUX output (non-safety output) | Output type | Transistor output | |
Number of outputs | 1 | ||
Maximum load current | 50mA | ||
Residual voltage (when ON) | ≤2.5V@50mA | ||
External input (break current) | Safety input | 1.5mA*2 | |
Reset/EDM input | About 10mA*1 | ||
Lock control input | About 10mA*1 | ||
Power supply |
Operating voltage
|
DC24V±15% |
|
Rated power | 4.6W (no load) | ||
|
Mechanical Parameters
|
||
|
Dimensions (w*h*l)
|
30*50*125mm |
|
|
Lock method
|
Mechanical lock/electromagnetic lock |
|
|
Safety output
|
NPN*2/PNP*2 |
|
|
Response time
|
100ms (independent work) |
|
Lock holding force Fzh | ≥2000N | |
Lock bolt insertion deviation | ≤2mm | |
Mechanical durability | >1 million times (door operation speed 1m/s) | |
Operation frequency | 1Hz | |
Minimum radius of revolving door | ≥220mm | |
Manual unlocking | front, back | |
Material | Nylon/zinc alloy/stainless steel | |
|
Environmental data
|
||
|
Ambient temperature
|
-20°C~55°C (no freezing) |
|
|
Environment humidity
|
5%~95%RH |
|
OX-D6 SAFETY SWITCH MODELS LIST
|
Locking method
|
Conǁguration type
|
Encoding type
|
Output method
|
Lead method | Model |
|
Mechanical lock
|
Standard type
|
Universal code
|
NPN
|
Direct outlet | OX-D6-CR-SN-A |
M12 connector | OX-D6-CR-SN-B | ||||
PNP | Direct outlet | OX-D6-CR-SP-A | |||
M12 connector | OX-D6-CR-SP-B | ||||
Unique code | NPN | Direct outlet | OX-D6-CR-DN-A | ||
M12 connector | OX-D6-CR-DN-B | ||||
PNP | Direct outlet | OX-D6-CR-DP-A | |||
M12 connector | OX-D6-CR-DP-B | ||||
High-function
type | Universal code | NPN | Direct outlet | OX-D6-CH-SN-A | |
M12 connector | OX-D6-CH-SN-B | ||||
PNP | Direct outlet | OX-D6-CH-SP-A | |||
M12 connector | OX-D6-CH-SP-B | ||||
Unique code | NPN | Direct outlet | OX-D6-CH-DN-A | ||
M12 connector | OX-D6-CH-DN-B | ||||
PNP | Direct outlet | OX-D6-CH-DP-A | |||
M12 connector | OX-D6-CH-DP-B | ||||
Electromagnetic lock | Standard type | Universal code | NPN | Direct outlet | OX-D6-DR-SN-A |
M12 connector | OX-D6-DR-SN-B | ||||
PNP | Direct outlet | OX-D6-DR-SP-A | |||
M12 connector | OX-D6-DR-SP-B | ||||
Unique code | NPN | Direct outlet | OX-D6-DR-DN-A | ||
M12 connector | OX-D6-DR-DN-B | ||||
PNP | Direct outlet | OX-D6-DR-DP-A | |||
M12 connector | OX-D6-DR-DP-B | ||||
High-function
type | Universal code | NPN | Direct outlet | OX-D6-DH-SN-A | |
M12 connector | OX-D6-DH-SN-B | ||||
PNP | Direct outlet | OX-D6-DH-SP-A | |||
M12 connector | OX-D6-DH-SP-B | ||||
Unique code | NPN | Direct outlet | OX-D6-DH-DN-A | ||
M12 connector | OX-D6-DH-DN-B | ||||
|
PNP
|
Direct outlet | OX-D6-DH-DP-A | |||
M12 connector | OX-D6-DH-DP-B | ||||
Note: the default cable is 3m. If you need other lengths, please contact customer service. | |||||
DIMENSION
WIRING DIAGRAM
OX-D6 Safety Door Switch Standard Type Wiring Diagram, PNP Cascade
OX-D6 Safety Door Switch Standard Type Wiring Diagram, NPN Cascade
OX-D6 Safety Door Switch Standard Type Wiring Diagram, No Cascade
OX-D6 Safety Door Switch High-function Type Wiring Diagram, No Cascade
OX-D6 Safety Door Switch High Function Type Wiring Diagram, PNP Cascade
OX-D6 Safety Door Switch High Function Type Wiring Diagram, NPN Cascade
OX-D6 Safety Door Switch High Function Type (PNP, cascade) Wiring Diagram
