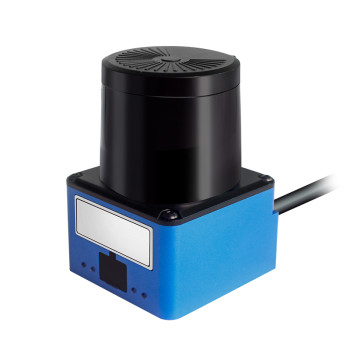

Economic Laser Scanning Radar sensing range 5m-10m

Detailed

Economic Laser Scanning Radar Basic characteristics
Product model	LD-05HN	LD-05HP
Model	0.05-3m(10%) 0.05-5m(90%)
Product model	LD-10HN	LD-10HP
Working area	0.05-6m(10%) 0.05-10m(90%)
Detection range	270°
Laser light source	Infrared laser (905nm)

Performance
Response time	Typical Value 50ms
Basic error	40mm
Statistical error	30mm
Number of channels	64 (each channel contains 3 detection areas)
Detection output delay	Settable within the range of 0ms-500ms
Detection hold delay	Settable within the range of 0ms-500ms
Detection size filtering angle	Settable within the range of 0.5°-5°

Interface
Configuration port	1 Micro - USB
Switch input	6 (PNP)
Switch output	4 (3 detection signals, 1 fault signal), single-channel load capacity 100mA
Indicator light	4 (3 detection signal lights, 1 status light)
Electrical performance
Working voltage	DC18-32V
Current consumption	60mA typical (without output load)
Working environment
Object reflectivity	5%-1000%
Working environment	-10℃-50℃
Ambient light intensity	< 15000lx

LiDAR Product size

Economic Laser Scanning Radar NPN Wiring Diagram

Economic Laser Scanning Radar PNP Wiring Diagram
