100 m Measurement Safety｜Laser Scanning Radar｜Discontinued
- group name
- Laser Scanning Radar
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- LD-100R
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 08:55:04 GMT
Paramtents
Sensing range： 0.1 m ~ 100 m
Scanning frequency： 10 Hz / 20 Hz
Scanning angle range： 360°
Angular resolution 0.05°/ 0.1°
Light source： Infrared laser (905 nm)
Laser safety level： Class 1 (GB7247.1-2012, Eye-safe IEC)
Packging & Delivery
-
Min Order1 piece
Briefing

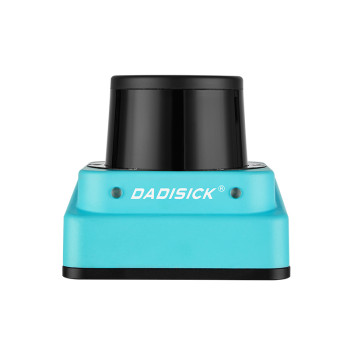

LD-100R is mainly designed for reflector-based AGV navigation, also used for scene measurement applications.
Detailed
|
Basic Information
|
||
|
Product number
|
Measurement laser scanning radar |
|
|
Model
|
LD-100R |
|
Output | I/O output & Ethernet output | |
|
Features
|
||
|
Light source
|
Infrared laser (905 nm) |
|
Laser safety level | Class I (GB 7247.1-2012, Eye safe IEC) | |
Laser spotlight diameter | 10 mm | |
Laser spotlight scan angle | 2.4mrad(H) ╳ 10 mrad(V) | |
|
Scanning angle range
|
360° |
|
|
Scanning frequency
|
10 Hz / 20 Hz |
|
|
Scanning Angular Resolution
|
0.05°/ 0.1° |
|
Sensing range | 0.1 m ~ 100 m | |
10% reflectivity range | 20 m | |
Outdoor performance | Anti-dusty, Anti-sunlight | |
Rain, fog and smoke penetration | Supported | |
Device Interface | ||
Ethernet | Rate: 10/100 Mbps Network protocol: TCP/IP Function: Device configuration / measurement data output | |
I/O Input | Input port: 4 Type: Level input High level range: DC 10 V - 30 V Low level range: DC 0 V - 0.7 V Preset functions: power saving and life extension control, effective level: high level | |
I/O Output | Input port: 4 Type: PNP/NPN switch output Switching voltage: supply voltage Power on status: off Preset function: device ready, valid state: on | |
Indicator light | Quantity: 4 Definition: PWR (power supply) LNK (Ethernet) ERR (device alarm: dirty/blocked/dense fog, high and low temperature) HTR (normal measurement) | |
|
Mechanical/electronic paramete
|
||
|
Operating voltage
|
DC 10 V – 30 V |
|
|
Power dissipation
|
6W@DC24V |
|
|
Degree of protection (IP)
|
IP65(GB 4208-2008) |
|
Insulation resistance | 1MQ(GB 16796-2009,5.4.4) | |
Electric strength | 0.5KV(GB 16796-2009,5.4.3) | |
Dimension (L ╳ W ╳ H) | 97 X 97 X 90 (mm) | |
Weight | 0.7 kg | |
Working Environment Standard | ||
Electrostatic discharge | 6 KV (GB/T 17626.2-2006, class 3) IEC | |
Fast bursts | 1 KV (GB/T 17626.4-2008, class 2) IEC | |
Electromagnetic field radiation immunity | GB/T 17626.3-2006, class 2 | |
Surge immunity | GB/T 17626.5-2008 Power interface: 1.2 / 50 μs, 2 KV / 1 KA (class 3) Ethernet interface: 10 / 700 μs, 1 KV / 25 A (class 2) I/O interface: 1.5 / 50 μs, 0.5 KV / 0.25 KA (class 1) | |
Impact ● Single impact ● Continuous impact | GB/T 2423.5 15g, 11 ms 10g, 16 ms | |
Vibration ● Frequency range ● Amplitude | GB/T 2423.10 10 Hz ~ 150 Hz 5 g | |
Humidity | 93%，+40℃，2h (GB/T 2423.3) | |
Operating temperature range | -10℃ ~ +50℃ | |
Storage temperature range | -30℃ ~ +70℃ | |
Ambient illumination range | 0 lux ~ 80,000 lux | |
1: Refers to a ф 100mm cylindrical reflector, the reflective surface material has a diffuse reflectance of 1000%, and the reflective surface length is 600mm. | ||
