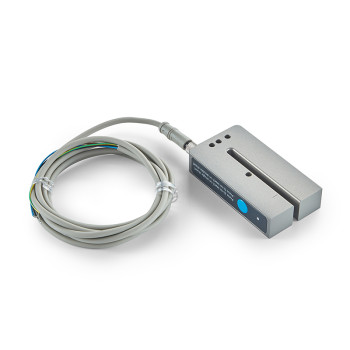

Ultrasonic Sensors CSDB Series | Ultrasonic Fork Sensors CSDB Series for Label Detection | DADISICK
- group name
- CSDB Series
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- CSDB series
- Delivery clauses under the trade mode
- CIP
- update time
- Sat, 23 Nov 2024 17:28:59 GMT
Paramtents
Size: Cuboid 85 x 18 x 46 mm
Groove depth: 68 mm
Slot width: 5 mm
Material: Metal, Aluminum
Connection type: 4-pin M8 connector
Ambient temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Groove depth: 68 mm
Slot width: 5 mm
Material: metal, aluminum
Connection type: 4-pin M8 connector
Slot width: 5 mm
Material: metal, aluminum
Connection type: 4-pin M8 connector
Detailed
Model | CSDB |
||
|
Groove depth
|
68 mm |
||
|
Slot width
|
5 mm
|
||
|
Minimum detectable object
|
Gap between labels / label size: 5 mm
|
||
Switching frequency | 1.2 kHZ | ||
Input type | With synchronization and learning functions | ||
Switching output | PNP + NPN | ||
Weight | 105 g | ||
|
Electrical data
|
|||
|
Working voltage
|
10-30 V DC, reverse polarity protection
|
||
|
Output current
|
100 mA
|
||
|
Response time
|
250 μs
|
||
LED yellow light | No target (air) | ||
LED red light | Double sheet detected | ||
LED green light | Leaflet detected | ||
Structural style | Channel shape | ||
material quality | Metal, Aluminum | ||
Line type | 4-pin M8 connector | ||
Protection level | IP 67 | ||
|
Environmental parameters
|
|||
|
Ambient temperature
|
-25°C~+70°C (248~343K)
|
||
Storage temperature | -40°C~+85°C (233~358K) | ||
