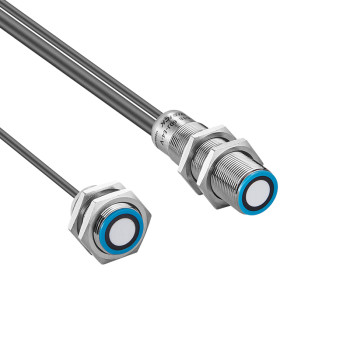

Ultrasonic Sensors CSDA Series | Double Sheet Detection Sensor | DADISICK
- group name
- CSDA Series
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- CSDA12 series | CSDA18 series | CSDA30 series
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 09:00:35 GMT
Paramtents
Size: Cylindrical M12 mm | M18 mm | M30 mm
Emitter - receiver spacing: 20-40 mm
Emitter - receiver spacing: 20-60 mm
Emitter - receiver spacing: 20-100 mm
Material: Nickel plated copper, plastic fittings
Connection type: 2 m, PVP cable, 0.14 mm²
Ambient temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Emitter - receiver spacing: 20-40 mm, 20-60 mm, 20-100 mm
Material: nickel plated copper, plastic fittings
Connection type: 2 m, PVP cable, 0.14 mm²
Material: nickel plated copper, plastic fittings
Connection type: 2 m, PVP cable, 0.14 mm²
Detailed
|
CSDA single and double sheet detection series 3-way control output 3E1/3E2/3E3/3E4
|
|||
|
Model
|
CSDA12-40-J25-3E1
|
CSDA18-60-J55-3E1
|
CSDA30-100-J55-3E1
|
|
CSDA12-40-J25-3E2
|
CSDA18-60-J55-3E2
|
CSDA30-100-J55-3E2
|
|
|
CSDA12-40-J25-3E3
|
CSDA18-60-J55-3E3
|
CSDA30-100-J55-3E3
|
|
CSDA12-40-J25-3E4 | CSDA18-60-J55-3E4 | CSDA30-100-J55-3E4 | |
Emitter - Receiver spacing | 20-40 mm | 20-60 mm | 20-100 mm |
Blind zone | 5 mm in front | 7 mm in front | 7 mm in front |
Maximum allowable angle deviation | ±45° to the vertical plane | ||
Scope of work | Paper and paper with a unit area weight of 20-60 g/m², alloy laminates and film swith a thickness of 0.2 mm, automatic adhesive films | < 1 mm thick metal composite board and film, self-adhesive sheets, labels on substrate materials > 0.01 mm paper, PCB board, silicon wafer | < 3 mm thick metal plate |
Output type: 3E1/3E2 | 3 switching outputs NPN, NO/NC | ||
Output type: 3E3/3E4 | 3 switching outputs PNP, NO/NC | ||
Response delay | 4 ms | 10 ms | 10 ms |
Weight | 200 g | 220 g | 480 g |
|
Electrical data
|
|||
|
Response delay
|
10 ms
|
||
|
Operating voltage
|
10-30 V DC, reverse polarity protection
|
||
|
LED green Iight
|
Tip: Single sheet detected
|
||
LED yellow Iight | Tip: No target (air) | ||
LED red light | Tip: Double sheet detected | ||
Overpower protection | 200 mA , red light and green light flashing at the same time | ||
Impedance | ≥ 4 KΩ | ||
Working current | 3 x 200 mA short circuit protection / overload protection | ||
No-load current | ≤ 30 mA | ||
Material | Copper nickel plating , plastic fittings , glass filled epoxy resin | ||
Connection type | 2 m, PVP cable, 0.14 mm² | ||
Drop | ≤ 2 V | ||
Pulse width | ≥ 100 ms | ||
Protection Class | IP 67 | ||
|
Environmental parameters
|
|||
|
Ambient temperature
|
-25°C~+70°C (248~343K)
|
||
Storage temperature | -40°C~+85°C (233~358K) | ||
