QLV series｜Highway Automatic Vehicle Classification Light Curtains｜DADISICK
- group name

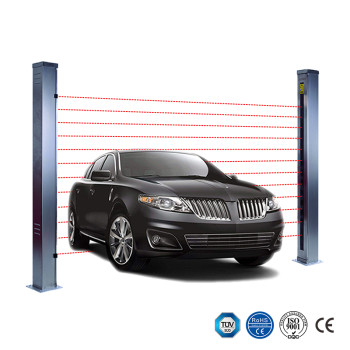

- Highway Automatic Vehicle Classification Light Curtains QLV Series
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- QLV series
- Delivery clauses under the trade mode
- CIP
- update time
- Thu, 21 Nov 2024 17:25:55 GMT
Paramtents
Contains： A set safety light curtain and protective cover
Protective cover height： 1600mm and 1800mm optional
Protection distance： Max. 50000mm
Suitable for beam resolution： 20mm，40mm and 80mm
Certification： TUV，UL，CE，RoSH，GB
Packging & Delivery
-
Min Order1 piece
Briefing
The shoot-type photosensor detects the object using beam interruption between the transmitter and the receiver.
Detailed
|
Basic data
|
|||
|
Product model
|
QLV series
|
||
|
Contains
|
A set safety light curtain and protective cover
|
||
|
Suitable for
|
QT series and QL series safety light curtains
|
||
|
Suitable for number of beams
|
4，6，8......72
|
||
Suitable for beam resolution | 20mm，40mm and 80mm | ||
Detection field height | Detection height ≤1440mm safety light curtains | ||
Protective cover height | 1600mm and 1800mm optional (Contact customer service for customization of other sizes) | ||
Protection distance | 0.3-5m，0.3-10m，0.3-15m，0.3-20m，0.3-25m，0.3-30m (optional) | ||
Glass window length | ≤1600mm | ||
|
Protective cover data
|
|||
|
Shell material
|
Stainless steel or aluminum alloy material
|
||
|
Window material
|
Heatable glass
|
||
|
Type of fastening
|
Floor mounting , Mounting plate
|
||
|
Mounting material
|
Steel plate
|
||
Heating power supply | 24V 10A | ||
Main thermostat | Disc package Closing temperature 4℃ Disconnecting temperature 29℃ | ||
Standby thermostat | Closure temperature of disc packaging 55℃ and disconnection temperature 36℃ | ||
Humidity switch | Relative humidity of mechanical nylon membrane trigger switch is 20-80%. | ||
Status indicator | Red LED light in front of heater when starting. | ||
Temperature range | Normal operating temperature - 20℃+70℃. | ||
Protection level | NEMA 3R （IEC IP54） | ||
